-55℃ 5000hours

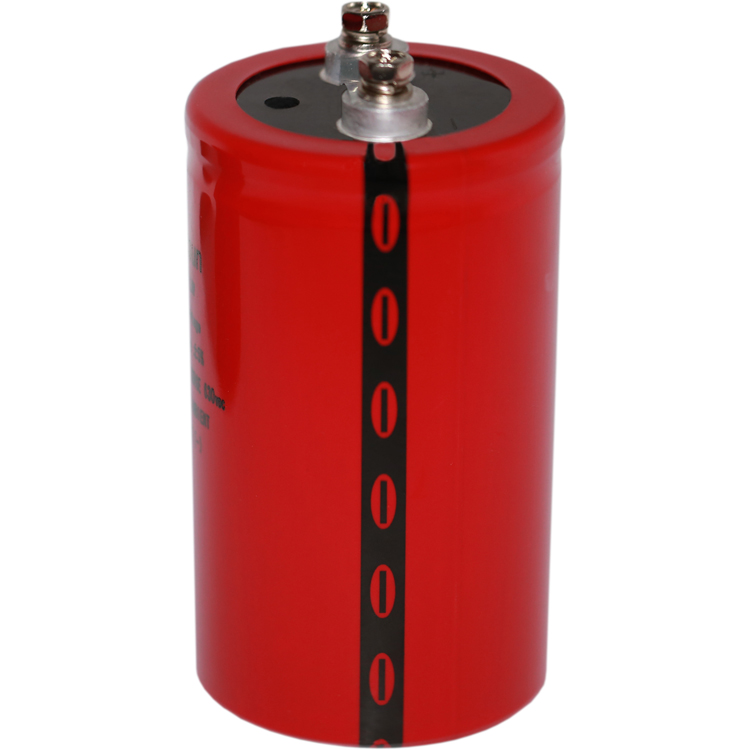

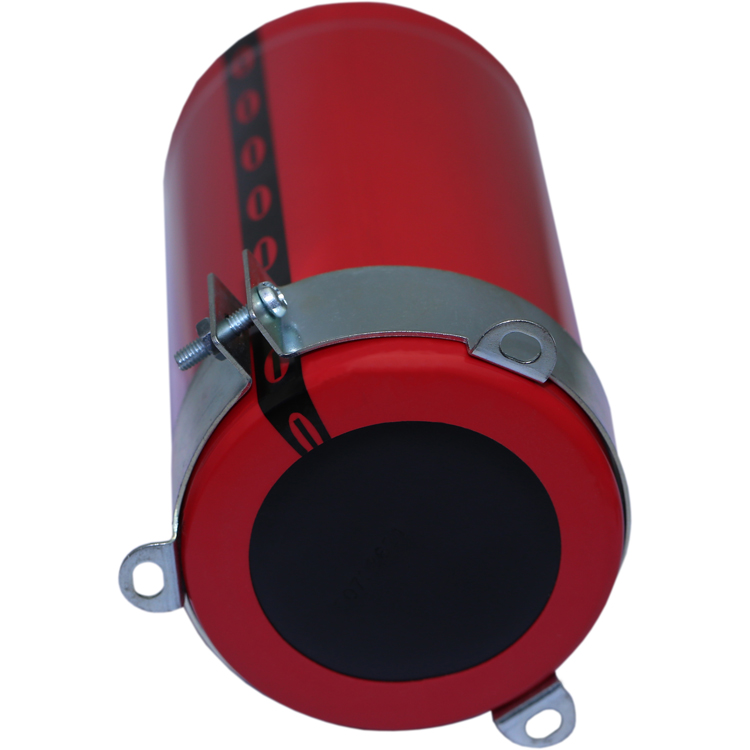

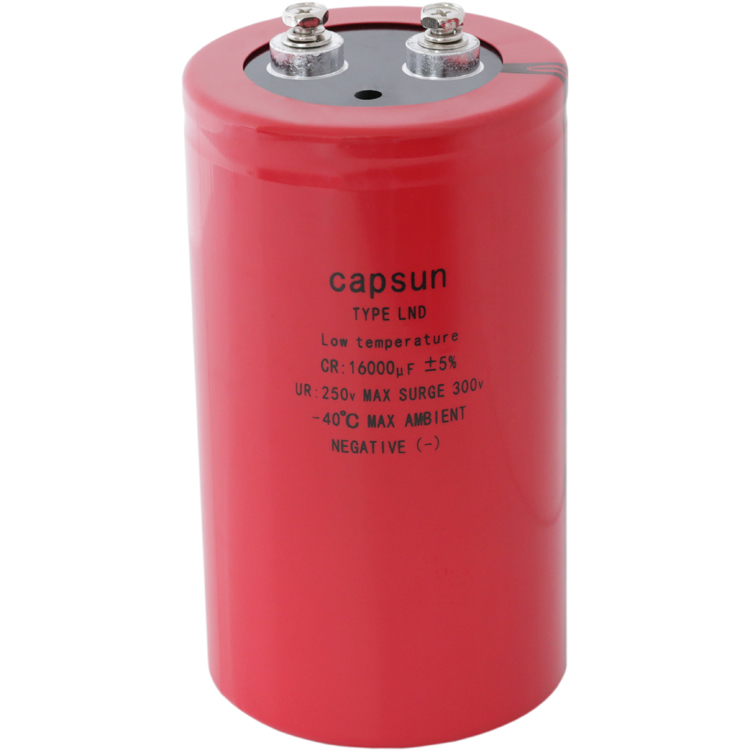

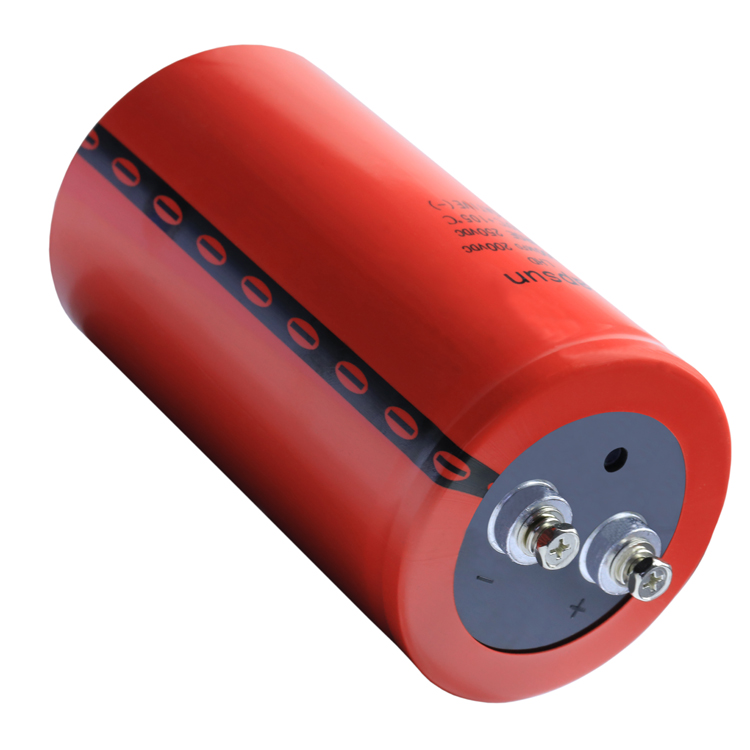

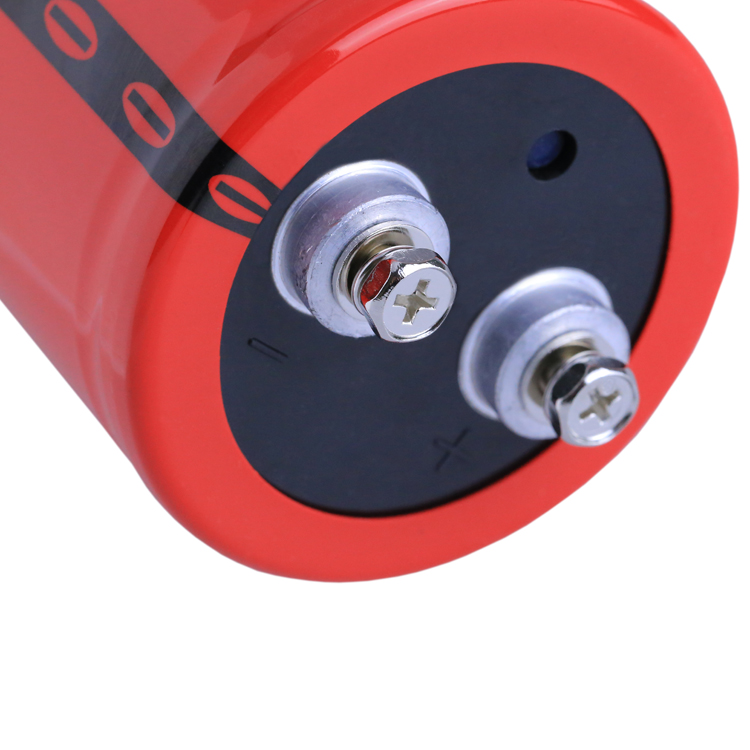

●Super Low temperature aluminum electrolytic capacitor
●outdoor high-voltage switchgear ,control gear ,feeder terminal unit and transformerTerminal unit for the power distribution systems vacuum switches  Outdoor high-voltage vacuum magnetic actuators automatic recover Outdoor high-voltage vacuum magnetic actuators circuit-breakers
●energy storage and Charge discharge

 ◆SPECIFIC ATIONS

items		Characteristics
Category temperature Range		-55℃~+85℃
Rated voltage Range		350~450VDC
Capacitance Tolerance		± 20%（M）                                                                                                    at  20℃/120HZ
Leakage Current		I=0.02CV or 5mA,whichever is smaller I: Where, I : Max. leakage current（µA）、C: Nominal capacitance（µF）、Rated voltage (V)                at 20℃after 5 minutes
Dissipation Factor（tanδ）		≤0.10                                                                                                          at  20℃/120HZ
Low Temperature characteristics		Capacitance change(vdc)  C（-25℃）/C（+20℃）≥0.7                                                             at 20℃/120HZ
Insulation Resistance		When measured between the terminals that are connected to each other and to the mounting clamp on the insulating sleeve covering the case by using an insulation resistance meter of 500Vdc, the insulation resistance shall not be less than 100mΩ
Insulation Withstanding Voltage		When a voltage of 2,000Vac is applied for 1 minute between the terminals that are connected to each other and to the mounting clamp on the insulating sleeve covering the case, there shall not be electrical damage
Endurance	The following specifications shall be satisfied when the capacitors are restored to 20℃ after subjected to DC voltage with the rated ripple current is applied (the peak voltage shall not exceed the rated voltage) for 2,000 hours at -55℃
	Capacitance change		≤±20% of the initial value
	D.F. (tanδ)		≤200% of the initial specified value
	Leakage current		≤The initial specified value
Shelf Life	The following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for1000 hours at -55℃ without voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4
	Capacitance change		≤±20% of the initial value
	D.F. (tanδ)		≤200% of the initial specified value
	Leakage current		≤The initial specified value

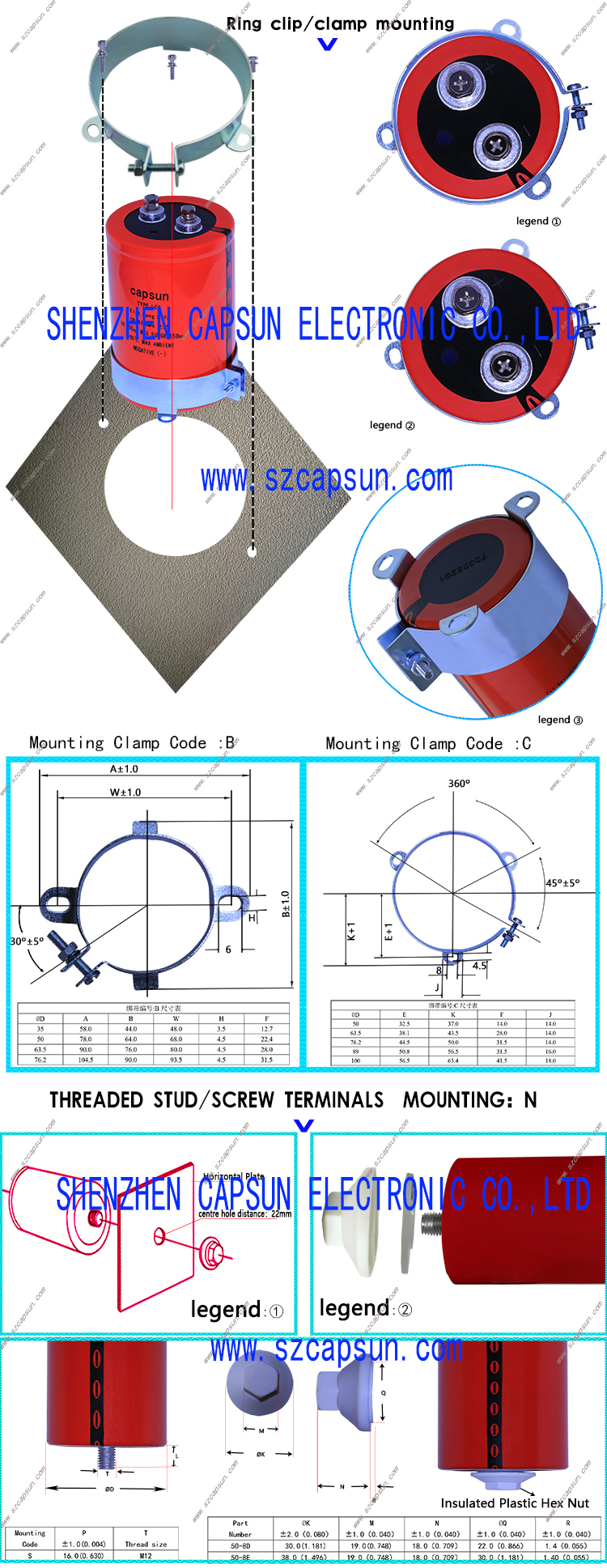

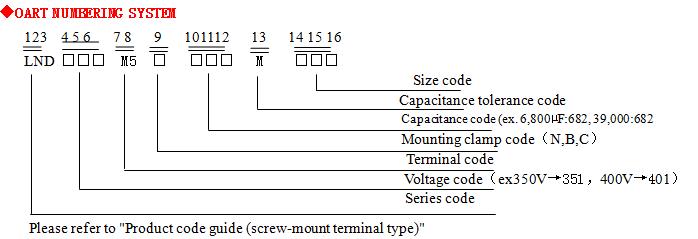

SRANDRAD RATINGS



W.V Vdc cap [μF] Case size D x L [mm] tanδ120HZ,20℃ Rated ripple current(Ams/-55℃,120Hz） Part NO. 350V 750 50*75 0.12 5.1 LND351M5C751MC75 1100 50*96 0.12 6.9 LND351M5C112MC96 1300 50*105 0.12 7.8 LND351M5C132MCA5 1600 50*130 0.12 9.5 LND351M5C162MCD0 1800 63.5*96 0.12 10.0 LND351M5C182MD96 1900 50*145 0.12 10.7 LND351M5C192MCE5 2400 63.5*115 0.12 12.6 LND351M5C242MDB5 2800 63.5*130 0.12 14.3 LND351M5C282MDD0 3400 63.5*155 0.12 17.1 LND351M5C342MDF5 3500 76.2*115 0.12 16.9 LND351M5C352MEB5 3800 63.5*170 0.12 18.8 LND351M5C382MDH0 4000 76.2*130 0.12 19.0 LND351M5C402MED0 5000 76.2*155 0.12 23.0 LND351M5C502MEF5 5600 76.2*170 0.12 25.3 LND351M5C562MEH0 6900 89*155 0.12 27.2 LND351M5C692MFF5 7700 89*170 0.12 29.6 LND351M5C772MFH0 8400 89*190 0.12 32.9 LND351M5C842MFK0 9500 100*190 0.12 37.3 LND351M5C952MGK0 11000 100*220 0.12 42.9 LND351M5C113MGN0 14000 100*270 0.12 53.1 LND351M5C143MGT0 400V 620 50*75 0.12 4.6 LND401M5C621MC75 880 50*96 0.12 6.1 LND401M5C881MC96 1000 50*105 0.12 6.8 LND401M5C102MCA5 1400 50*130 0.12 8.9 LND401M5C142MCD0 1500 63.5*96 0.12 9.1 LND401M5C152MD96 1600 50*145 0.12 9.9 LND401M5C162MCE5 2000 63.5*115 0.12 11.5 LND401M5C202MDB5 2300 63.5*130 0.12 13.0 LND401M5C232MDD0 2800 63.5*155 0.12 15.5 LND401M5C282MDF5 2900 76.2*115 0.12 15.4 LND401M5C292MEB5 3200 63.5*170 0.12 17.3 LND401M5C322MDH0 3400 76.2*130 0.12 17.5 LND401M5C342MED0 4200 76.2*155 0.12 21.1 LND401M5C422MEF5 4600 76.2*170 0.12 23.0 LND401M5C462MEH0 5700 89*155 0.12 24.7 LND401M5C572MFF5 6400 89*170 0.12 27.0 LND401M5C642MFH0 7000 89*190 0.12 30.0 LND401M5C702MFK0 7900 100*190 0.12 34.0 LND401M5C792MGK0 9400 100*220 0.12 39.6 LND401M5C942MGN0 12000 100*270 0.12 49.2 LND401M5C123MGT0 450V 500 50*75 0.12 4.0 LND451M5C501MC75 710 50*96 0.12 5.2 LND451M5C711MC96 840 50*105 0.12 5.9 LND451M5C841MCA5 1100 50*130 0.12 7.5 LND451M5C112MCD0 1200 63.5*96 0.12 7.8 LND451M5C122MD96 1300 50*145 0.12 8.4 LND451M5C132MCE5 1600 63.5*115 0.12 9.8 LND451M5C162MDB5 1800 63.5*130 0.12 10.9 LND451M5C182MDD0 2300 63.5*155 0.12 13.3 LND451M5C232MDF5 2300 76.2*115 0.12 13.0 LND451M5C232MEB5 2500 63.5*170 0.12 14.5 LND451M5C252MDH0 2700 76.2*130 0.12 14.8 LND451M5C272MED0 3300 76.2*155 0.12 17.7 LND451M5C332MEF5 3700 76.2*170 0.12 19.5 LND451M5C372MEH0 4600 89*155 0.12 22.2 LND451M5C462MFF5 5100 89*170 0.12 24.1 LND451M5C512MFH0 5700 89*190 0.12 27.1 LND451M5C572MFK0 6400 100*190 0.12 30.6 LND451M5C642MGK0 7600 100*220 0.12 35.6 LND451M5C762MGN0 9500 100*270 0.12 43.7 LND451M5C952MGT0

RTED RIPPLE CURRENT MUIERS
The ripple frequency and standard list of the specified value is not at the same time, please use the value is less than the following
●Frequency Multiplier

Frequency（HZ）	120	300	1K	3K
coefficient	0.83	1.00	1.25	1.33




Note : The endurance of capacitors is shorted with internal heating produced by ripple current at the rate of halving the lifetime with every 5 to 10℃ rise. When long life performance is required in actual use, the rms ripple current has to be reduced. Also, for the LCS series capacitors, using them at operating voltage less than their rated voltage can extend their lifetime. For the details, please contact representative of capsun
