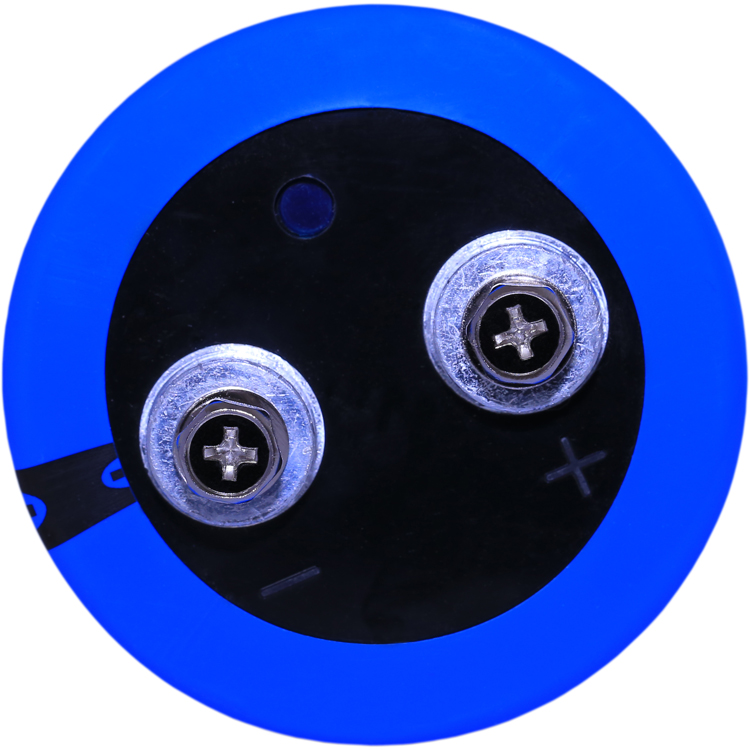

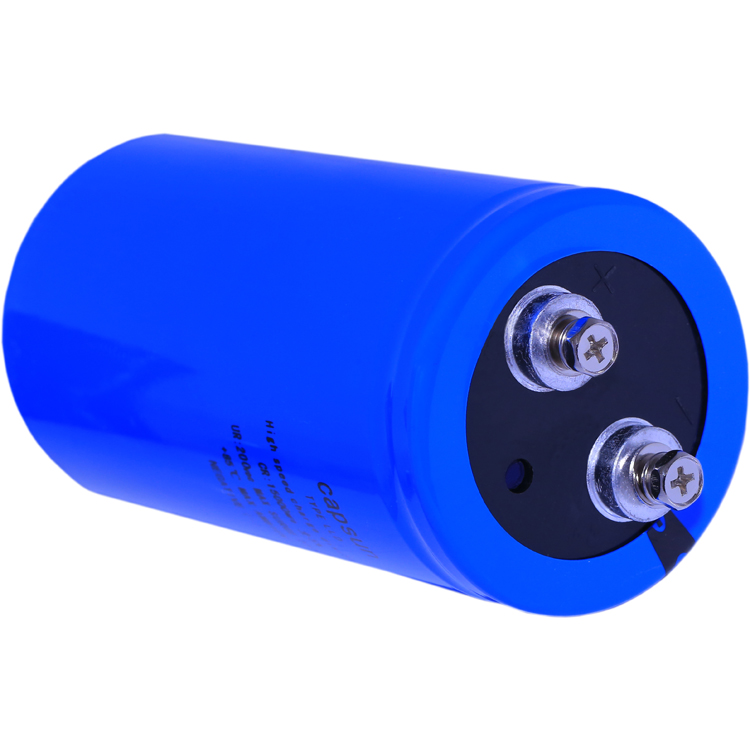

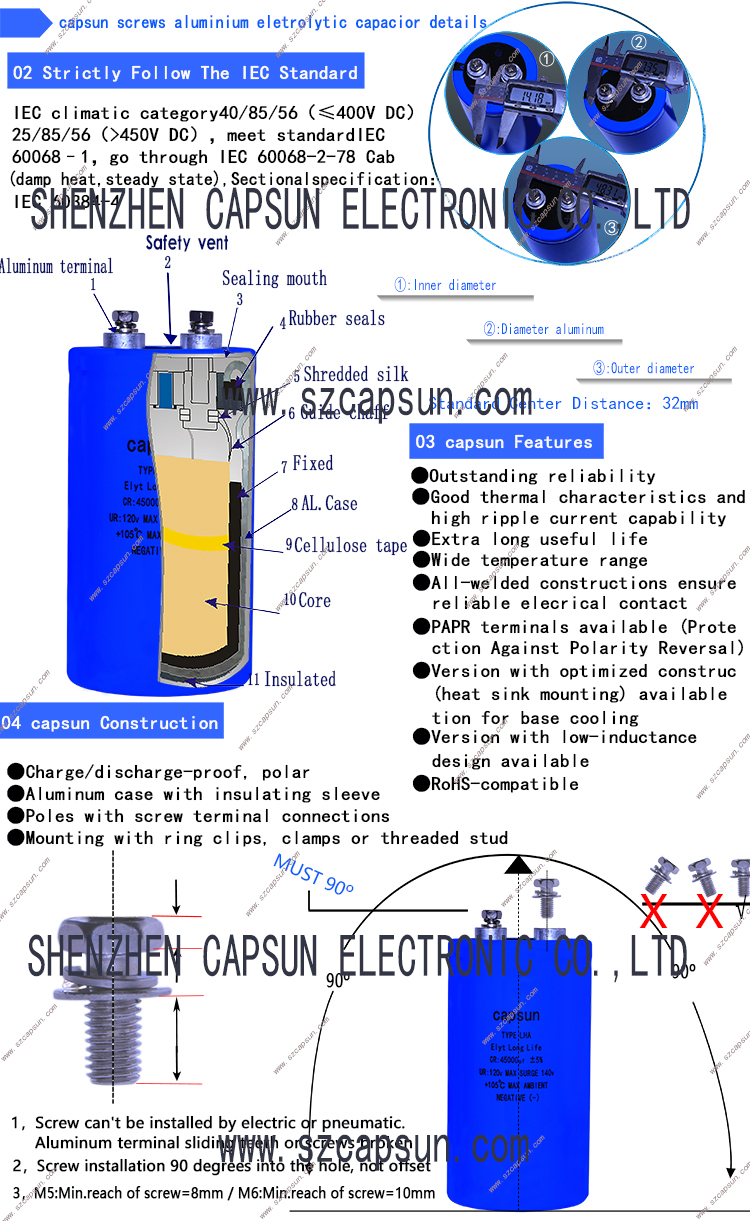

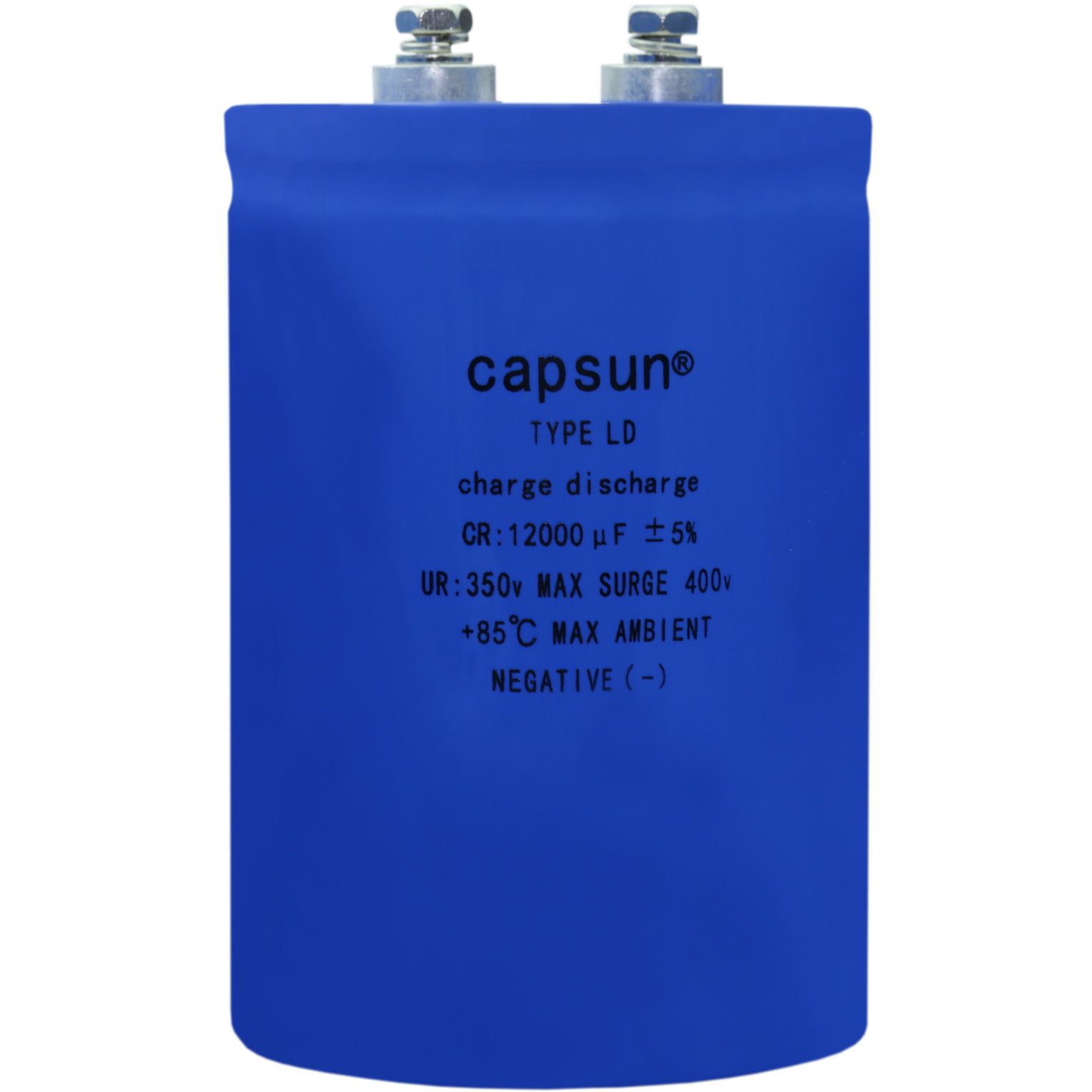

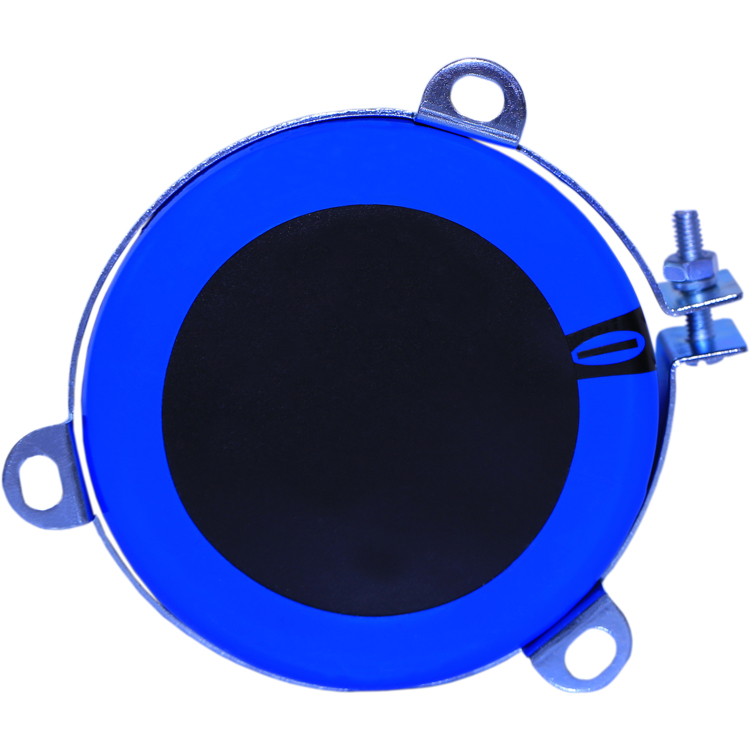

High speed charge discharge Aluminum electrolytic capacitor
Series：LD
Sort：High speed charge discharge Aluminum electrolytic capacitor
Category：High speed charge discharge Aluminum electrolytic capacitor
Rated voltage range（Vdc）：50~550

Download

Working cap temperature. Standard life(hours)

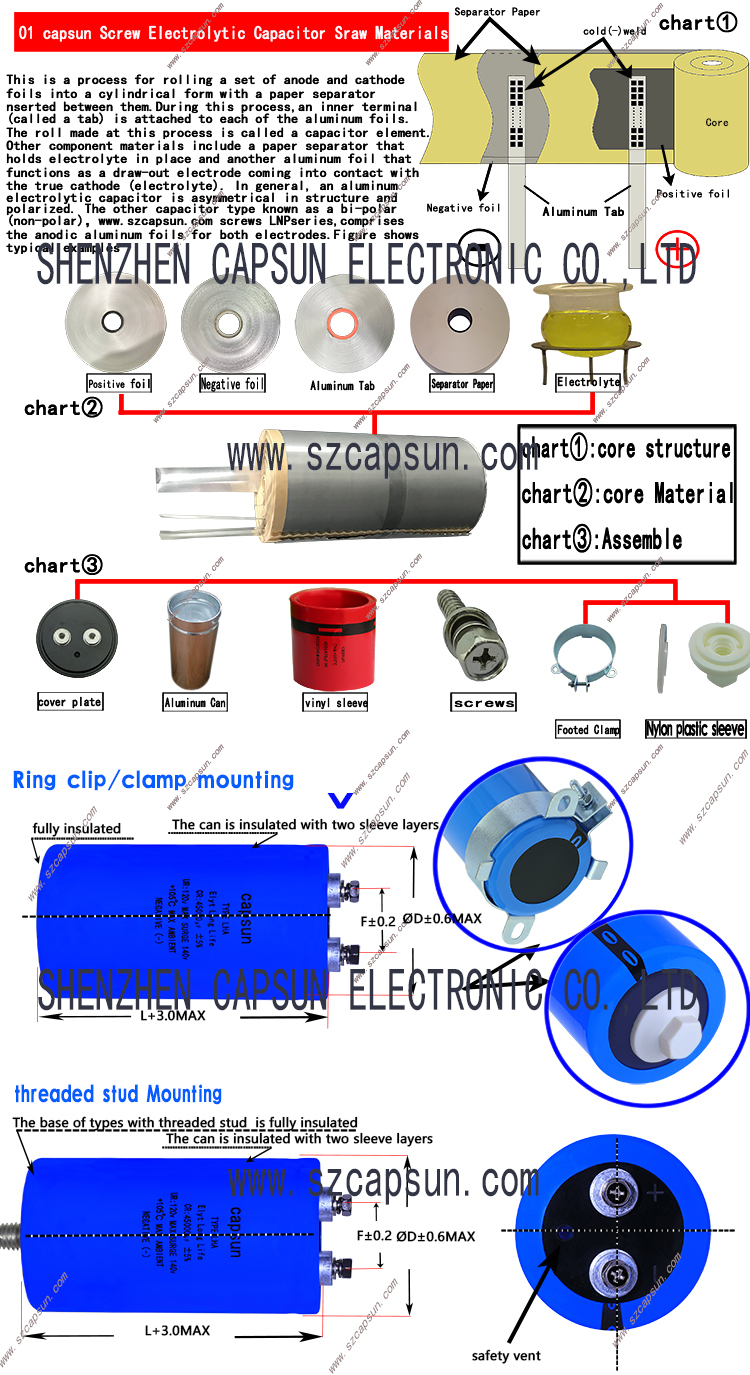

Detailed
Specification

85℃ 2000 hours，life or over 500000 Time

items		characteristics
Category temperature Range		-25~+85℃
Rated voltage Range		350~550_VDC
Capacitance Tolerance		± 20%（M） at 20℃/120HZ
Leakage Current		I=0.02CV or 5mA,whichever is smaller I: Where, I : Max. leakage current（µA）、C: Nominal capacitance（µF）、Rated voltage (V)at 20℃after 5 minutes)
Dissipation Factor（tanδ）		0.25max at 20℃/120HZ
Low Temperature characteristics	Rated voltage(vdc)		350to450V		500to550v	at 20℃/120HZ
	C（-25℃）/C（+20℃）		≥0.7		≥0.6
Insulation Resistance	When measured between the terminals that are connected to each other and to the mounting clamp on the insulating sleeve covering the case by using an insulation resistance meter of 500Vdc, the insulation resistance shall not be less than 100mΩ
Insulation Withstanding Voltage	When a voltage of 2,000Vac is applied for 1 minute between the terminals that are connected to each other and to the mounting clamp on the insulating sleeve covering the case, there shall not be electrical damage.。

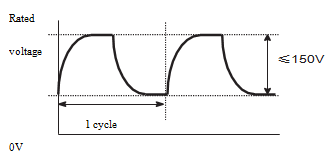

Endurance of charge-discharge behavior	After an application of charge-discharge voltage for 10million times(charge-discharge voltage difference(△∨)=rated voltage x 0.3,cycle 3HZ)capacitors shell meet the characteristics requirement listed at right at(15℃～35℃)
	Capacitance change			≤±20% of the initial value
	D.F. (tanδ)			≤300% of the initial specified value
	Leakage current			≤The initial specified value
	Appearance			There shell be found to remarkable abnormality on the capacitor
Shelf Life	The following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1000 hours at 85℃ without voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4
	Capacitance change			≤±20% of the initial value
	D.F. (tanδ)			≤300% of the initial specified value
	Leakage current			≤The initial specified value

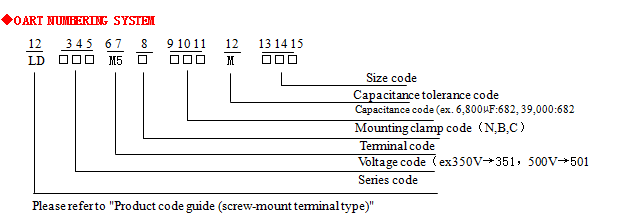

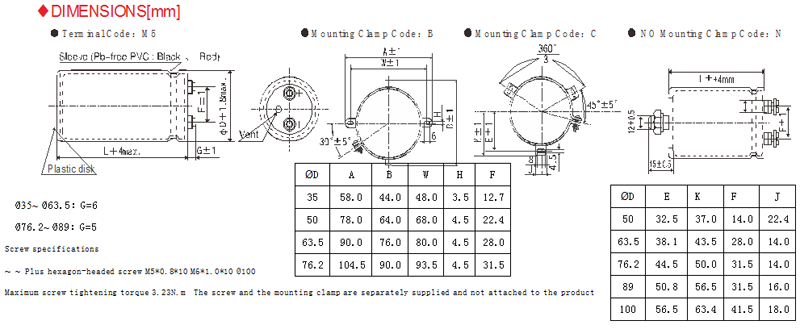

SRANDRAD RATINGS

W.V	cap	Case sizeD x L	tanδ120HZ,20℃	Rated ripple current	Part NO.
[V]	[μF]	[mm]	[tanδ]	（Ams/85℃,120Hz）	Part NO.
350V	1500	50*65	0.25	5.09	LD351M5C152MC65
	1800	50*75	0.25	5.93	LD351M5C182MC75
	2200	50*96	0.25	7.3	LD351M5C222MC96
	2700	50*115	0.25	8.76	LD351M5C272MCB5
	3300	63.5*85	0.25	9.71	LD351M5C332MD85
	3900	50*130	0.25	11.1	LD351M5C392MCD0
	3900	63.5*96	0.25	11.1	LD351M5C392MD96
	4700	63.5*115	0.25	13.2	LD351M5C472MDB5
	5600	63.5*130	0.25	15.2	LD351M5C562MDD0
	5600	76.2*96	0.25	14.3	LD351M5C562ME96
	6800	76.2*115	0.25	17	LD351M5C682MEB5
	8200	76.2*130	0.25	19.6	LD351M5C822MED0
	10000	76.2*155	0.25	23.4	LD351M5C103MEF5
	12000	89*130	0.25	24.1	LD351M5C123MFD0
	15000	89*155	0.25	29.1	LD351M5C153MFF5
400V	1200	50*65	0.25	4.55	LD401M5C122MC65
	1500	50*75	0.25	5.41	LD401M5C152MC75
	1800	50*85	0.25	6.26	LD401M5C182MC85
	2200	50*96	0.25	7.3	LD401M5C222MC96
	2700	50*115	0.25	8.76	LD401M5C272MCB5
	3300	63.5*96	0.25	10.2	LD401M5C332MD96
	3900	63.5*115	0.25	12	LD401M5C392MDB5
	4700	63.5*130	0.25	13.9	LD401M5C472MDD0
	4700	76.2*96	0.25	13.1	LD401M5C472ME96
	5600	63.5*155	0.25	16.5	LD401M5C562MDF5
	6800	76.2*115	0.25	17	LD401M5C682MEB5
	8200	76.2*155	0.25	21.2	LD401M5C822MEF5
	10000	89*130	0.25	22	LD401M5C103MFD0
	12000	89*155	0.25	26	LD401M5C123MFF5
450V	1000	50*70	0.25	3.87	LD451M5C102MC70
	1200	50*75	0.25	4.36	LD451M5C122MC75
	1500	50*90	0.25	5.28	LD451M5C152MC90
	1800	50*96	0.25	5.95	LD451M5C182MC96
	2200	50*130	0.25	7.54	LD451M5C222MCD0
	2700	63.5*96	0.25	8.34	LD451M5C272MD96
	3300	63.5*115	0.25	9.97	LD451M5C332MDB5
	3900	63.5*130	0.25	11.4	LD451M5C392MDD0
	3900	76.2*96	0.25	11.1	LD451M5C392ME96
	4700	63.5*155	0.25	13.6	LD451M5C472MDF5
	4700	76.2*115	0.25	13.2	LD451M5C472MEB5
	5600	76.2*130	0.25	15.2	LD451M5C562MED0
	6800	76.2*155	0.25	18.1	LD451M5C682MEF5
	8200	89*130	0.25	19.2	LD451M5C822MFD0
500V	470	50*60	0.25	2.17	LD501M5C471MC60
	680	50*65	0.25	2.7	LD501M5C681MC65
	820	50*75	0.25	3.15	LD501M5C821MC75
	1000	50*85	0.25	3.67	LD501M5C102MC85
	1200	50*96	0.25	4.22	LD501M5C122MC96
	1500	50*115	0.25	5.14	LD501M5C152MCB5
	1500	63.5*96	0.25	5.42	LD501M5C152MD96
	1800	50*130	0.25	5.95	LD501M5C182MCD0
	1800	63.5*96	0.25	5.94	LD501M5C182MD96
	2200	63.5*115	0.25	7.1	LD501M5C222MDB5
	2200	76.2*96	0.25	7.3	LD501M5C222ME96
	2700	63.5*130	0.25	8.31	LD501M5C272MDD0
	3300	76.2*115	0.25	9.65	LD501M5C332MEB5
	3900	76.2*130	0.25	11.1	LD501M5C392MED0
	4700	76.2*155	0.25	13.1	LD501M5C472MEF5
	6800	89*155	0.25	15.9	LD501M5C682MFF5
550V	390	50*60	0.25	1.98	LD551M5C391MC60
	560	50*65	0.25	2.45	LD551M5C561MC65
	680	50*75	0.25	2.87	LD551M5C681MC75
	820	50*85	0.25	3.32	LD551M5C821MC85
	1200	50*115	0.25	4.6	LD551M5C122MCB5
	1500	63.5*96	0.25	5.42	LD551M5C152MD96
	1800	76.2*80	0.25	6.12	LD551M5C182ME80
	2200	76.2*96	0.25	7.3	LD551M5C222ME96
	2700	76.2*115	0.25	8.73	LD551M5C272MEB5
	3300	76.2*130	0.25	10.2	LD551M5C332MED0
	5600	89*155	0.25	14.5	LD551M5C562MFF5

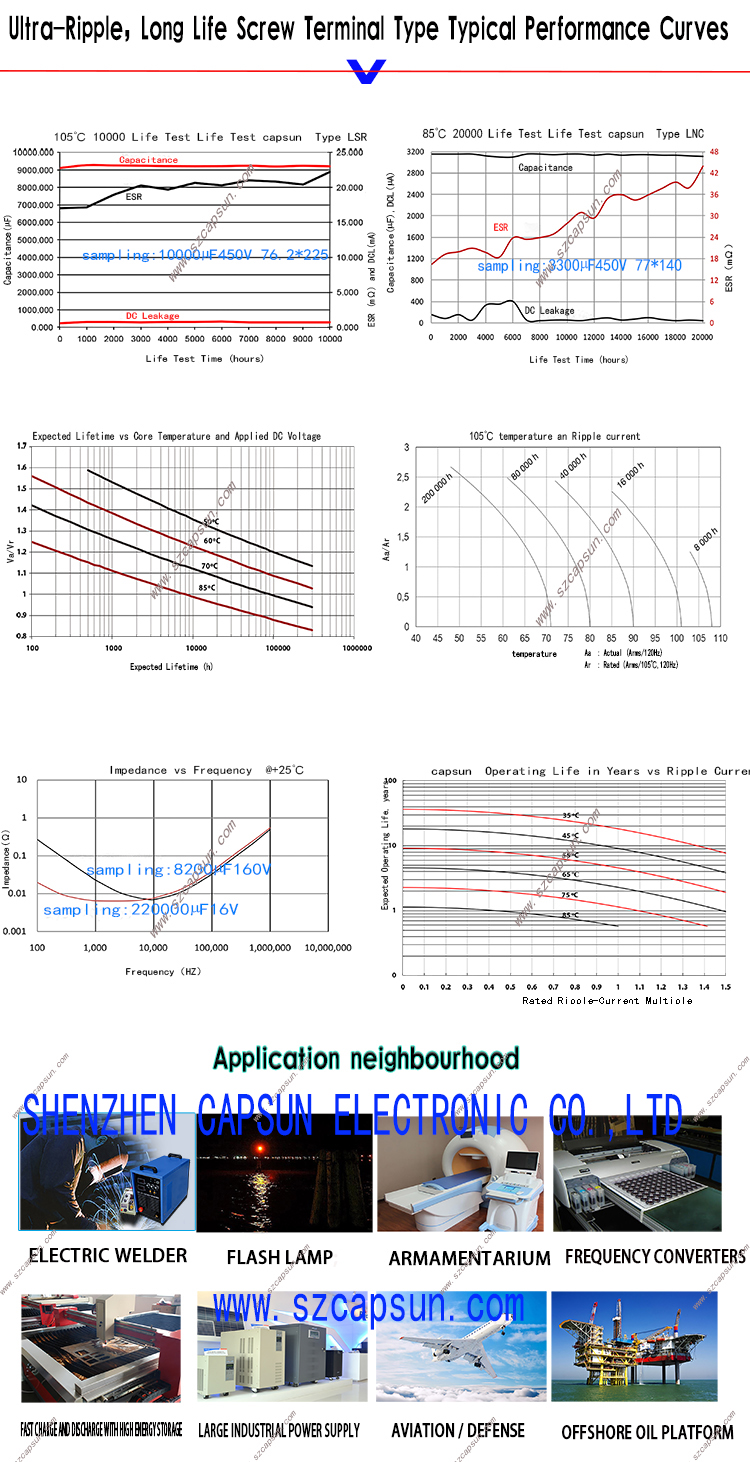

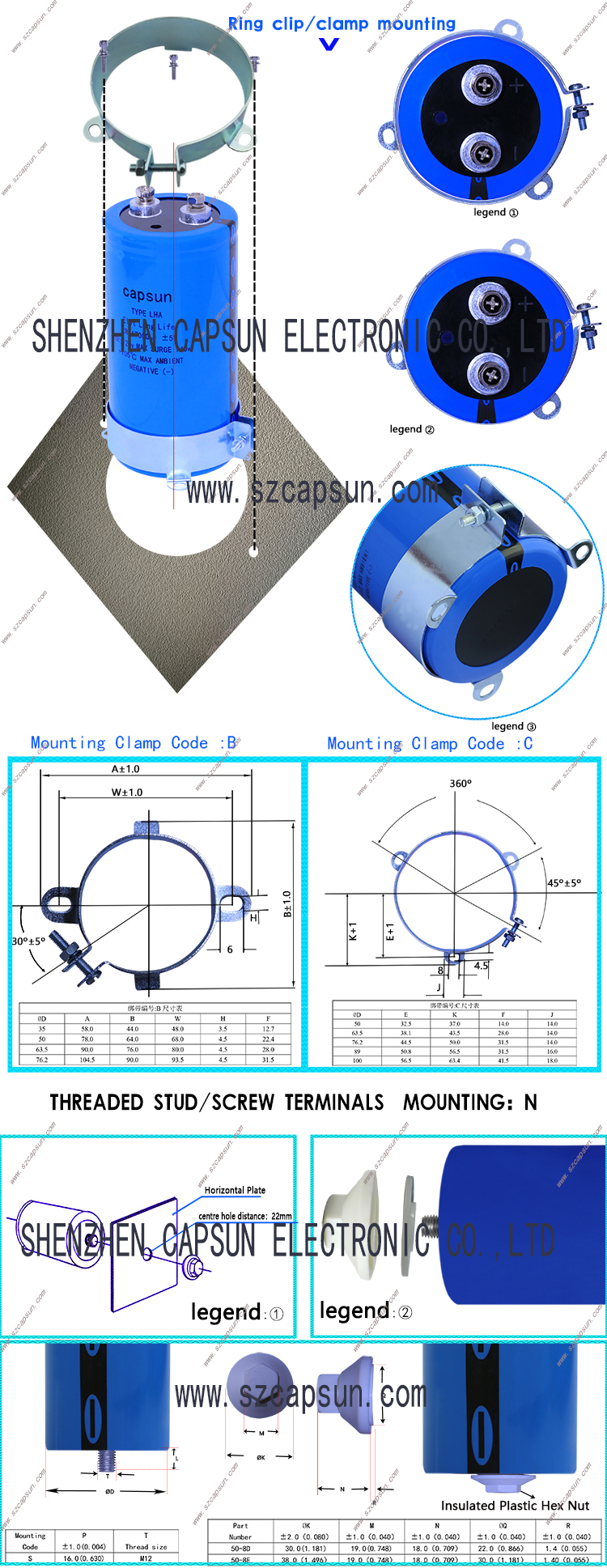

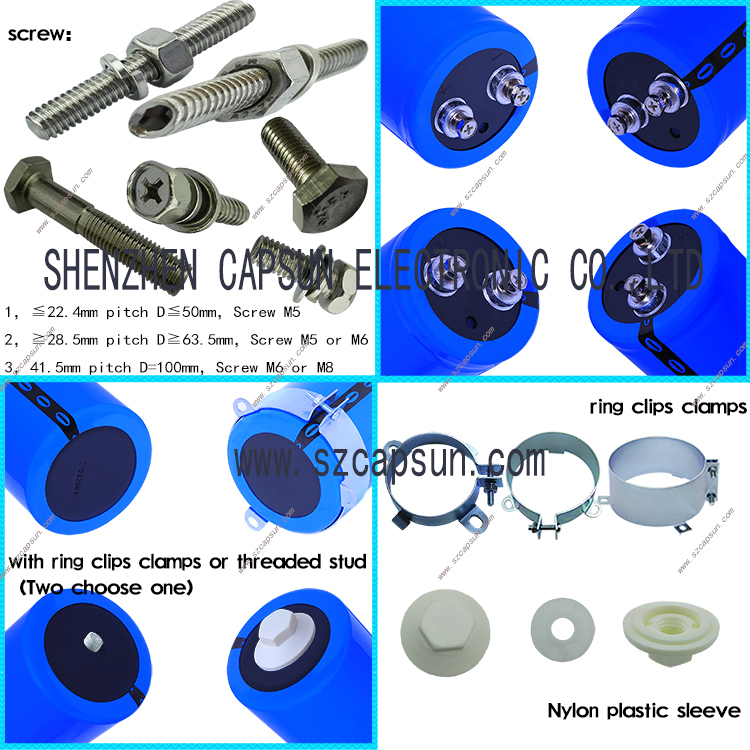

◆ RTED RIPPLE CURRENT MUIERS
The ripple frequency and standard list of the specified value is not at the same time, please use the value is less than the following

● Frequency Multipliers

Frequency（HZ）	50	120	300	1K	3K
coefficient	0.8	1.0	1.1	1.3	1.4

Note : The endurance of capacitors is shorted with internal heating produced by ripple current at the rate of halving the lifetime with
every 5 to 10℃ rise. When long life performance is required in actual use, the rms ripple current has to be reduced. Also, for the LB
series capacitors, using them at operating voltage less than their rated voltage can extend their lifetime. For the details, please
contact representative of capsun
