105℃ 10000hours

items		characteristics
Category temperature Range		-25~+105℃
Rated voltage Range		16~550VDC
Capacitance Tolerance		± 20%（M）                                                           20℃、120HZ
Leakage Current		I=0.01CV or 5mA,whichever is smaller I: Where, I : Max. leakage current（µA）、C: Nominal capacitance（µF）、Rated voltage (V)at 20℃after 5 minutes)
Dissipation Factor（MAX）		Rated voltage（Vdc） 160v～400V 420V～450V tanδMax 0.15 0.20
Low Temperature characteristics		Rated voltage（Vdc） 160v～400V 420V～500V Z(-25℃)/Z(+20℃) 4 8
Endurance	The following specifications shall be satisfied when the capacitors are restored to 20℃ after subjected to DC voltage with the rated ripple current is applied (the peak voltage shall not exceed the rated voltage) for 10,000 hours at 105℃
	Capacitance change		≤±20% of the initial value
	D.F. (tanδ)		≤300% of the initial specified value
	Leakage current		≤The initial specified value
Shelf Life	The following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1000 hours at 105℃ without voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4
	Capacitance change		≤±20% of the initial value
	D.F. (tanδ)		≤300% of the initial specified value
	Leakage current		≤The initial specified value

SRANDRAD RATINGS

WV [Vdc] cap [μF] Case size D x L [mm] ESR 120 Hz 20℃[mΩ] Ripple current Ams/105℃, 120Hz Par t NO. 16V 20SV 4700 22×20 0.160 1.60 CLM160HZN472MP20 4700 22×25 0.160 1.77 CLM160HZN472MP25 6800 22×25 0.110 2.60 CLM160HZN682MP25 6800 25×20 0.110 1.80 CLM160HZN682MQ20 8200 22×25 0.090 3.10 CLM160HZN822MP25 10000 22×30 0.075 3.80 CLM160HZN103MP30 10000 25×25 0.143 3.80 CLM160HZN103MQ25 10000 30×20 0.084 2.40 CLM160HZN103MR20 12000 22×30 0.119 4.50 CLM160HZN123MP30 12000 25×25 0.119 4.50 CLM160HZN123MQ25 15000 22×35 0.054 5.30 CLM160HZN153MP35 15000 25×30 0.054 5.30 CLM160HZN153MQ30 15000 35×20 0.055 3.20 CLM160HZN153MA20 18000 22×40 0.045 5.60 CLM160HZN183MP40 18000 25×30 0.045 5.60 CLM160HZN183MQ30 22000 22×45 0.065 6.10 CLM160HZN223MP45 22000 25×35 0.065 6.10 CLM160HZN223MQ35 22000 30×30 0.065 6.10 CLM160HZN223MR30 27000 25×45 0.031 6.30 CLM160HZN273MQ45 27000 30×35 0.031 6.30 CLM160HZN273MR35 33000 25×50 0.025 6.80 CLM160HZN333MQ50 33000 30×40 0.025 6.80 CLM160HZN333MR40 33000 35×30 0.025 6.80 CLM160HZN333MA30 39000 30×45 0.022 6.95 CLM160HZN393MR45 39000 35×35 0.022 6.95 CLM160HZN393MA35 47000 30×50 0.030 7.50 CLM160HZN473MR50 47000 35×40 0.030 7.50 CLM160HZN473MA40 56000 35×45 0.020 8.70 CLM160HZN563MA45 56000 40×40 0.022 9.00 CLM160HZN563MU40 68000 35×50 0.018 9.00 CLM160HZN683MA50 82000 35×63 0.016 10.00 CLM160HZN823MA63 82000 40×50 0.016 10.30 CLM160HZN823MU50 100000 35×80 0.015 11.00 CLM160HZN104MA80 100000 40×63 0.018 11.40 CLM160HZN104MU63 120000 35×105 0.014 12.81 CLM160HZN124MAA5 120000 40×80 0.017 12.40 CLM160HZN124MU80 120000 50×50 0.014 13.17 CLM160HZN124MC50 150000 50×63 0.012 14.40 CLM160HZN154MC63 180000 40×105 0.013 14.85 CLM160HZN184MUA5 180000 50×80 0.011 15.69 CLM160HZN184MC80 220000 50×92 0.010 16.73 CLM160HZN224MC92 270000 50×105 0.009 17.79 CLM160HZN274MCA5 330000 50×130 0.008 18.31 CLM160HZN334MCD0

25V 32SV 3300 22×20 0.177 1.60 CLM250HZN332MP20 3300 22×25 0.161 1.70 CLM250HZN332MP25 4700 22×25 0.110 2.40 CLM250HZN472MP25 4700 25×20 0.125 1.80 CLM250HZN472MQ20 5600 22×25 0..095 1.90 CLM250HZN562MP25 6800 22×30 0.078 2.75 CLM250HZN682MP30 6800 25×25 0.078 3.50 CLM250HZN682MQ25 6800 30×20 0.078 2.30 CLM250HZN682MR20 8200 22×30 0.065 3.60 CLM250HZN822MP30 8200 25×25 0.065 3.60 CLM250HZN822MQ25 10000 22×25 0.058 3.80 CLM250HZN103MP25 10000 25×30 0.058 3.80 CLM250HZN103MQ30 10000 30×25 0.136 3.28 CLM250HZN103MR25 10000 35×20 0.060 2.70 CLM250HZN103MA20 12000 22×40 0.050 4.10 CLM250HZN123MP40 12000 25×35 0.050 4.10 CLM250HZN123MQ35 12000 30×30 0.050 4.10 CLM250HZN123MR30 15000 22×50 0.040 4.60 CLM250HZN153MP50 15000 25×40 0.040 4.60 CLM250HZN153MQ40 15000 30×30 0.040 4.60 CLM250HZN153MR30 18000 25×45 0.035 5.50 CLM250HZN183MQ45 18000 30×35 0.035 5.50 CLM250HZN183MR35 22000 25×50 0.030 6.10 CLM250HZN223MQ50 22000 30×40 0.030 6.10 CLM250HZN223MR40 27000 30×45 0.023 6.20 CLM250HZN273MR45 27000 35×35 0.023 6.20 CLM250HZN273MA35 33000 30×50 0.020 6.80 CLM250HZN333MR50 33000 35×40 0.020 6.80 CLM250HZN333MA40 33000 40×40 0.026 7.30 CLM250HZN333MU40 39000 35×45 0.020 7.40 CLM250HZN393MA45 39000 40×40 0.020 8.00 CLM250HZN393MU40 47000 35×50 0.024 8.00 CLM250HZN473MA50 47000 35×63 0.017 8.30 CLM250HZN473MA63 56000 35×70 0.015 9.10 CLM250HZN563MA70 56000 40×63 0.015 9.50 CLM250HZN563MU63 56000 35×63 0.024 8.60 CLM250HZN563MA63 56000 40×50 0.016 9.00 CLM250HZN563MU50 68000 35×80 0.013 10.40 CLM250HZN683MA80 68000 40×63 0.017 10.25 CLM250HZN683MU63 82000 50×50 0.016 12.29 CLM250HZN823MC50 100000 35×105 0.010 11.97 CLM250HZN104MAA5 100000 50×63 0.014 13.45 CLM250HZN104MC63 100000 40×80 0.012 12.00 CLM250HZN104MU80

25V 32SV 120000 50×80 0.012 15.29 CLM250HZN124MC80 150000 40×105 0.011 14.07 CLM250HZN154MUA5 150000 50×92 0.011 16.01 CLM250HZN154MC92 180000 50×105 0.010 16.89 CLM250HZN184MCA5 35V 44SV 2200 22×20 0.211 1.40 CLM350HZN222MP20 2200 22×25 0.166 1.50 CLM350HZN222MP25 3300 22×25 0.110 2.30 CLM350HZN332MP25 3300 25×20 0.120 1.70 CLM350HZN332MQ20 3900 22×25 0.095 2.70 CLM350HZN392MP25 4700 22×30 0.080 3.30 CLM350HZN472MP30 4700 25×25 0.080 3.30 CLM350HZN472MQ25 4700 30×20 0.090 2.00 CLM350HZN472MR20 5600 22×30 0.083 3.40 CLM350HZN562MP30 5600 25×25 0.083 3.40 CLM350HZN562MQ25 6800 22×35 0.068 3.70 CLM350HZN682MP35 6800 35×20 0.070 2.40 CLM350HZN682MA20 6800 25×30 0.069 3.70 CLM350HZN682MQ30 8200 22×40 0.057 4.00 CLM350HZN822MP40 8200 25×35 0.057 4.00 CLM350HZN822MQ35 10000 22×45 0.050 4.40 CLM350HZN103MP45 10000 25×40 0.050 4.40 CLM350HZN103MQ40 10000 30×30 0.050 4.40 CLM350HZN103MR30 10000 35×25 0.050 4.40 CLM350HZN103MA25 12000 25×45 0.044 5.10 CLM350HZN123MQ45 12000 30×35 0.044 5.10 CLM350HZN123MR35 12000 35×30 0.044 5.10 CLM350HZN123MA30 15000 25×50 0.057 5.60 CLM350HZN153MQ50 15000 30×40 0.036 5.60 CLM350HZN153MR40 15000 35×30 0.036 5.60 CLM350HZN153MA30 18000 30×45 0.048 5.70 CLM350HZN183MR45 18000 35×35 0.048 5.70 CLM350HZN183MA35 22000 30×50 0.026 6.10 CLM350HZN223MR50 22000 35×40 0.026 6.10 CLM350HZN223MA40 27000 35×45 0.021 6.80 CLM350HZN273MA45 27000 40×40 0.021 6.80 CLM350HZN273MU40 33000 35×50 0.018 7.15 CLM350HZN333MA50 33000 35×63 0.018 7.80 CLM350HZN333MA63 39000 35×63 0.015 7.90 CLM350HZN393MA63 39000 35×70 0.015 8.60 CLM350HZN393MA70 39000 40×50 0.017 8.00 CLM350HZN393MU50 47000 35×80 0.015 9.50 CLM350HZN473MA80 47000 40×63 0.016 9.60 CLM350HZN473MU63 56000 50×50 0.015 10.94 CLM350HZN563MC50

35V 44SV 56000 40×80 0.015 10.30 CLM350HZN563MU80 68000 35×105 0.010 10.62 CLM350HZN683MAA5 68000 50×63 0.013 11.93 CLM350HZN683MC63 82000 40×105 0.012 12.02 CLM350HZN823MUA5 82000 50×80 0.012 13.06 CLM350HZN823MC80 100000 50×92 0.011 13.97 CLM350HZN104MC92 120000 50×105 0.010 14.86 CLM350HZN124MCA5 50V 63SV 1500 22×20 0.225 1.20 CLM500HZN152MP20 1500 22×25 0.220 1.25 CLM500HZN152MP25 2200 22×25 0.150 1.80 CLM500HZN222MP25 2200 25×20 0.175 1.40 CLM500HZN222MQ20 2700 22×25 0.125 2.20 CLM500HZN272MP25 3300 22×30 0.100 2.70 CLM500HZN332MP30 3300 25×25 0.158 2.70 CLM500HZN332MQ25 3300 30×20 0.117 1.70 CLM500HZN332MR20 3900 22×30 0.085 2.80 CLM500HZN392MP30 3900 25×25 0.085 2.80 CLM500HZN392MQ25 4700 22×35 0.110 3.00 CLM500HZN472MP35 4700 25×30 0.110 3.00 CLM500HZN472MQ30 4700 30×25 0.110 3.00 CLM500HZN472MR25 4700 35×20 0.080 2.10 CLM500HZN472MA20 5600 22×40 0.060 3.40 CLM500HZN562MP40 5600 25×35 0.060 3.40 CLM500HZN562MQ35 5600 30×30 0.060 3.40 CLM500HZN562MR30 6800 22×50 0.050 3.90 CLM500HZN682MP50 6800 25×40 0.050 3.90 CLM500HZN682MQ40 6800 30×30 0.050 3.90 CLM500HZN682MR30 8200 25×45 0.040 4.40 CLM500HZN822MQ45 8200 30×35 0.040 4.40 CLM500HZN822MR35 10000 25×50 0.040 5.00 CLM500HZN103MQ50 10000 30×40` 0.040 5.00 CLM500HZN103MR40 10000 35×30 0.040 5.00 CLM500HZN103MA30 12000 30×45 0.033 5.60 CLM500HZN123MR45 12000 35×35 0.033 5.60 CLM500HZN123MA35 15000 30×50 0.037 6.40 CLM500HZN153MR50 15000 35×40 0.037 6.40 CLM500HZN153MA40 18000 35×63 0.018 7.80 CLM500HZN183MA63 18000 35×45 0.022 6.90 CLM500HZN183MA45 18000 40×40 0.023 6.94 CLM500HZN183MU40 22000 35×70 0.025 8.60 CLM500HZN223MA70 22000 35×50 0.025 7.60 CLM500HZN223MA50 27000 35×80 0.013 9.30 CLM500HZN273MA80 27000 40×63 0.018 9.00 CLM500HZN273MU63

50V 63SV 27000 35×63 0.018 8.30 CLM500HZN273MA63 27000 40×50 0.025 8.10 CLM500HZN273MU50 33000 35×80 0.015 9.20 CLM500HZN333MA80 33000 40×63 0.018 9.10 CLM500HZN333MU63 33000 50×50 0.018 10.48 CLM500HZN333MC50 47000 50×63 0.013 11.54 CLM500HZN473MC63 47000 35×105 0.014 10.27 CLM500HZN473MAA5 56000 40×105 0.012 11.47 CLM500HZN563MUA5 56000 50×80 0.012 12.46 CLM500HZN563MC80 68000 50×92 0.011 13.17 CLM500HZN683MC92 82000 50×105 0.011 13.87 CLM500HZN823MCA5 63V 79SV 1000 22×20 0.380 1.20 CLM630HZN102MP20 1000 22×25 0.332 1.20 CLM630HZN102MP25 1500 22×25 0.221 1.70 CLM630HZN152MP25 1500 25×20 0.250 1.30 CLM630HZN152MQ20 2200 22×30 0.151 2.50 CLM630HZN222MP30 2200 25×25 0.151 2.50 CLM630HZN222MQ25 2200 30×20 0.170 1.50 CLM630HZN222MR20 2700 22×35 0.123 3.70 CLM630HZN272MP35 2700 25×30 0.123 3.70 CLM630HZN272MQ30 3300 22×40 0.110 4.10 CLM630HZN332MP40 3300 25×30 0.110 4.10 CLM630HZN332MQ30 3300 30×25 0.110 4.10 CLM630HZN332MR25 3300 35×20 0.125 1.70 CLM630HZN332MA20 3900 22×45 0.100 4.40 CLM630HZN392MP45 3900 25×35 0.100 4.40 CLM630HZN392MQ35 3900 30×30 0.100 4.40 CLM630HZN392MR30 4700 22×50 0.080 4.90 CLM630HZN472MP50 4700 25×40 0.080 4.90 CLM630HZN472MQ40 4700 30×30 0.080 4.90 CLM630HZN472MR30 4700 35×25 0.080 4.90 CLM630HZN472MA25 5600 35×30 0.070 5.40 CLM630HZN562MA30 5600 25×45 0.070 5.40 CLM630HZN562MQ45 5600 30×35 0.070 5.40 CLM630HZN562MR35 6800 25×50 0.060 5.80 CLM630HZN682MQ50 6800 30×40 0.060 5.80 CLM630HZN682MR40 6800 35×30 0.060 5.80 CLM630HZN682MA30 8200 30×45 0.067 6.00 CLM630HZN822MR45 8200 35×35 0.067 6.00 CLM630HZN822MA35 10000 40×40 0.028 6.60 CLM630HZN103MU40 10000 35×40 0.033 6.50 CLM630HZN103MA40 12000 35×63 0.019 7.70 CLM630HZN123MA63 12000 35×50 0.028 7.20 CLM630HZN123MA50

63V 79SV 12000 40×40 0.035 7.15 CLM630HZN123MU40 15000 35×70 0.016 8.50 CLM630HZN153MA70 15000 35×63 0.028 7.70 CLM630HZN153MA63 18000 35×80 0.023 9.40 CLM630HZN183MA80 18000 40×63 0.028 9.25 CLM630HZN183MU63 27000 40×80 0.018 10.00 CLM630HZN273MU80 27000 35×105 0.015 10.38 CLM630HZN273MAA5 27000 50×50 0.018 10.86 CLM630HZN273MC50 33000 40×105 0.015 11.76 CLM630HZN333MUA5 33000 50×63 0.017 11.57 CLM630HZN333MC63 47000 50×80 0.013 12.78 CLM630HZN473MC80 51000 50×92 0.012 13.34 CLM630HZN513MC92 56000 50×105 0.012 13.93 CLM630HZN563MCA5 80V 100SV 680 22×20 0.450 1.00 CLM800HZN681MP20 680 22×25 0.390 1.00 CLM800HZN681MP25 1000 22×25 0.265 1.50 CLM800HZN102MP25 1000 25×20 0.300 1.20 CLM800HZN102MQ20 1200 22×25 0.220 1.80 CLM800HZN122MP25 1500 22×30 0.177 2.30 CLM800HZN152MP30 1500 25×25 0.177 2.30 CLM800HZN152MQ25 1500 30×20 0.200 1.40 CLM800HZN152MR20 1800 22×35 0.147 2.50 CLM800HZN182MP35 1800 25×30 0.147 2.50 CLM800HZN182MQ30 2200 22×40 0.155 2.70 CLM800HZN222MP40 2200 25×30 0.155 2.70 CLM800HZN222MQ30 2200 30×25 0.155 2.70 CLM800HZN222MR25 2200 35×20 0.135 1.70 CLM800HZN222MA20 2700 22×45 0.098 2.80 CLM800HZN272MP45 2700 25×35 0.098 2.80 CLM800HZN272MQ35 2700 30×30 0.098 2.80 CLM800HZN272MR30 3300 22×50 0.085 3.20 CLM800HZN332MP50 3300 25×40 0.085 3.20 CLM800HZN332MQ40 3300 30×30 0.085 3.20 CLM800HZN332MR30 3900 25×45 0.080 3.60 CLM800HZN392MQ45 3900 30×35 0.080 3.60 CLM800HZN392MR35 4700 25×50 0.065 4.10 CLM800HZN472MA50 4700 30×40 0.072 4.10 CLM800HZN472MR40 5600 30×45 0.055 4.60 CLM800HZN562MR45 5600 35×35 0.055 4.60 CLM800HZN562MA35 6800 30×50 0.045 5.20 CLM800HZN682MR50 6800 35×40 0.045 5.20 CLM800HZN682MA40 8200 35×50 0.040 5.80 CLM800HZN822MA50 8200 40×40 0.040 5.83 CLM800HZN822MU40

80V 100SV 10000 35×63 0.033 6.40 CLM800HZN103MA63 12000 35×70 0.020 8.10 CLM800HZN123MA70 12000 40×50 0.025 7.50 CLM800HZN123MU50 15000 35×80 0.017 8.80 CLM800HZN153MA80 15000 40×63 0.020 8.50 CLM800HZN153MU63 18000 40×80 0.014 10.30 CLM800HZN183MU80 18000 50×50 0.023 10.00 CLM800HZN183MC50 22000 35×105 0.015 9.86 CLM800HZN223MAA5 22000 50×63 0.019 11.08 CLM800HZN223MC63 27000 40×105 0.015 11.35 CLM800HZN273MUA5 27000 50×80 0.015 12.33 CLM800HZN273MC80 33000 50×92 0.014 13.37 CLM800HZN333MC92 39000 50×105 0.013 14.34 CLM800HZN393MCA5 100V 125SV 470 22×20 0.450 1.00 CLM101HZN471MP20 470 22×25 0.450 1.10 CLM101HZN471MP25 560 22×25 0.400 1.30 CLM101HZN561MP25 680 22×25 0.320 1.60 CLM101HZN681MP25 680 25×20 0.390 1.10 CLM101HZN681MQ20 1000 22×30 0.220 2.00 CLM101HZN102MP30 1000 25×25 0.220 2.00 CLM101HZN102MQ25 1000 30×20 0.250 1.20 CLM101HZN102MR20 1200 22×35 0.195 2.30 CLM101HZN122MP35 1200 25×30 0.180 2.30 CLM101HZN122MQ30 1500 22×40 0.155 2.60 CLM101HZN152MP40 1500 25×30 0.155 2.60 CLM101HZN152MQ30 1500 30×25 0.155 2.60 CLM101HZN152MR25 1500 35×20 0.177 1.50 CLM101HZN152MA20 1800 22×45 0.130 2.80 CLM101HZN182MP45 1800 25×35 0.140 2.80 CLM101HZN182MQ35 1800 30×30 0.140 2.80 CLM101HZN182MR30 2200 22×50 0.121 3.10 CLM101HZN222MP50 2200 25×40 0.121 3.10 CLM101HZN222MQ40 2200 30×30 0.121 3.10 CLM101HZN222MR30 2200 35×25 0.121 3.14 CLM101HZN222MA25 2700 25×45 0.104 3.70 CLM101HZN272MQ45 2700 30×35 0.104 3.70 CLM101HZN272MR35 2700 35×30 0.104 3.70 CLM101HZN272MA30 3300 25×50 0.090 4.10 CLM101HZN332MQ50 3300 30×40 0.090 4.10 CLM101HZN332MR40 3900 30×45 0.080 4.50 CLM101HZN392MR45 3900 35×35 0.080 4.50 CLM101HZN392MA35 4700 30×50 0.070 5.10 CLM101HZN472MR50 4700 35×40 0.070 5.10 CLM101HZN472MA40 5600 40×40 0.060 5.80 CLM101HZN562MU40

100V 125SV 5600 35×45 0.060 5.80 CLM101HZN562MA45 6800 35×50 0.050 6.60 CLM101HZN682MA50 6800 35×63 0.024 7.20 CLM101HZN682MA63 6800 40×50 0.026 7.40 CLM101HZN682MU50 8200 35×63 0.040 7.00 CLM101HZN822MA63 8200 35×70 0.021 8.00 CLM101HZN822MA70 8200 40×50 0.040 7.30 CLM101HZN822MU50 8200 40×63 0.021 8.40 CLM101HZN822MU63 10000 35×80 0.033 8.70 CLM101HZN103MA80 10000 40×63 0.033 8.00 CLM101HZN103MU63 10000 50×50 0.033 8.82 CLM101HZN103MC50 12000 40×80 0.028 8.65 CLM101HZN123MU80 12000 35×105 0.028 8.57 CLM101HZN123MAA5 15000 40×105 0.022 10.12 CLM101HZN153MUA5 15000 50×63 0.022 10.07 CLM101HZN153MC63 18000 50×80 0.018 11.00 CLM101HZN183MC80 22000 50×92 0.015 11.76 CLM101HZN223MC92 27000 50×105 0.014 12.53 CLM101HZN273MCA5 160V 200SV 220 22×20 1.000 0.80 CLM161HZN221MP20 220 22×25 0.850 0.90 CLM161HZN221MP25 270 22×25 0.700 1.20 CLM161HZN271MP25 270 25×20 0.800 0.90 CLM161HZN271MQ20 330 22×25 0.603 1.50 CLM161HZN331MP25 390 22×25 0.470 1.60 CLM161HZN391MP25 390 22×30 0.470 1.60 CLM161HZN391MP30 390 25×25 0.470 1.60 CLM161HZN391MQ25 390 30×20 0.600 1.10 CLM161HZN391MR20 470 22×30 0.423 2.10 CLM161HZN471MP30 470 25×25 0.423 2.10 CLM161HZN471MQ25 560 22×30 0.355 2.25 CLM161HZN561MP30 560 25×25 0.355 2.25 CLM161HZN561MQ25 560 35×20 0.420 1.30 CLM161HZN561MA20 680 22×35 0.293 2.50 CLM161HZN681MP35 680 25×30 0.293 2.50 CLM161HZN681MQ30 680 30×25 0.293 2.50 CLM161HZN681MR25 820 22×40 0.260 2.50 CLM161HZN821MP40 820 22×45 0.260 2.80 CLM161HZN821MP45 820 25×35 0.260 2.80 CLM161HZN821MQ35 820 30×25 0.260 2.75 CLM161HZN821MR25 1000 22×45 0.220 3.00 CLM161HZN102MP45 1000 25×40 0.220 3.00 CLM161HZN102MQ40 1000 30×30 0.220 3.00 CLM161HZN102MR30 1200 25×50 0.210 3.25 CLM161HZN122MQ50 1200 30×35 0.210 3.25 CLM161HZN122MR35

160V 200SV 1200 35×30 0.210 3.25 CLM161HZN122MA30 1500 25×50 0.170 3.70 CLM161HZN152MQ50 1500 30×35 0.170 3.70 CLM161HZN152MR35 1500 35×30 0.166 3.73 CLM161HZN152MA30 1800 30×50 0.140 4.20 CLM161HZN182MR50 1800 35×35 0.140 4.20 CLM161HZN182MA35 2200 30×50 0.105 4.78 CLM161HZN222MR50 2200 35×40 0.115 4.78 CLM161HZN222MA40 2700 35×50 0.090 5.50 CLM161HZN272MA50 2700 40×40 0.080 5.50 CLM161HZN272MU40 3300 35×63 0.065 6.30 CLM161HZN332MA63 3300 40×50 0.065 6.30 CLM161HZN332MU50 3900 35×80 0.055 7.30 CLM161HZN392MA80 3900 40×63 0.055 7.30 CLM161HZN392MU63 4700 40×80 0.036 6.60 CLM161HZN472MU80 5600 40×80 0.040 8.30 CLM161HZN562MU80 5600 50×50 0.040 8.25 CLM161HZN562MC50 6800 35×105 0.032 9.10 CLM161HZN682MAA5 8200 50×63 0.026 8.90 CLM161HZN822MC63 10000 40×105 0.022 9.90 CLM161HZN103MUA5 10000 50×80 0.022 9.80 CLM161HZN103MC80 12000 50×92 0.018 12.90 CLM161HZN123MC92 15000 50×105 0.014 14.10 CLM161HZN153MCA5 180V 225SV 330 22×25 0.603 1.80 CLM181HZN331MP25 390 22×30 0.510 1.20 CLM181HZN391MP30 390 25×25 0.510 1.20 CLM181HZN391MQ25 470 22×35 0.423 2.10 CLM181HZN471MP35 470 25×25 0.423 2.10 CLM181HZN471MQ25 560 22×35 0.355 2.30 CLM181HZN561MP35 560 25×30 0.355 2.30 CLM181HZN561MQ30 680 22×40 0.293 2.50 CLM181HZN681MP40 680 25×35 0.293 2.50 CLM181HZN681MQ35 680 30×30 0.293 2.50 CLM181HZN681MR30 820 22×45 0.243 2.80 CLM181HZN821MP45 820 25×40 0.243 2.80 CLM181HZN821MQ40 820 30×30 0.243 2.80 CLM181HZN821MR30 1000 25×45 0.199 3.00 CLM181HZN102MQ45 1000 30×35 0.199 3.00 CLM181HZN102MR35 1200 25×50 0.166 3.30 CLM181HZN122MQ50 1200 30×40 0.166 3.30 CLM181HZN122MR40 1200 35×35 0.166 3.30 CLM181HZN122MA35 1500 30×45 0.133 3.80 CLM181HZN152MR45 1500 35×40 0.133 3.80 CLM181HZN152MA40

180V 225SV 1800 30×50 0.111 4.30 CLM181HZN182MR50 1800 35×40 0.111 4.30 CLM181HZN182MA40 2200 35×50 0.090 4.90 CLM181HZN222MA50 2700 40×63 0.051 5.00 CLM181HZN272MU63 2700 35×70 0.054 4.80 CLM181HZN272MA70 3300 35×80 0.046 5.40 CLM181HZN332MA80 4700 40×80 0.036 6.60 CLM181HZN472MU80 200V 250SV 150 22×20 1.330 0.65 CLM201HZN151MP20 150 22×25 1.220 0.70 CLM201HZN151MP25 220 22×25 0.083 1.00 CLM201HZN221MP25 220 25×20 0.905 0.90 CLM201HZN221MQ20 270 22×25 0.610 1.40 CLM201HZN271MP25 330 22×25 0.550 1.60 CLM201HZN331MP25 330 30×20 0.603 1.00 CLM201HZN331MR20 390 22×30 0.470 1.70 CLM201HZN391MP30 390 25×25 0.470 1.70 CLM201HZN391MQ25 470 22×35 0.390 1.90 CLM201HZN471MP35 470 25×30 0.390 1.90 CLM201HZN471MQ30 470 30×25 0.423 1.90 CLM201HZN471MR25 470 35×20 0.460 1.30 CLM201HZN471MA20 560 22×40 0.330 2.40 CLM201HZN561MP40 560 25×30 0.330 2.43 CLM201HZN561MQ30 560 30×25 0.390 2.15 CLM201HZN561MR25 680 22×45 0.270 2.70 CLM201HZN681MP45 680 25×35 0.270 2.70 CLM201HZN681MQ35 680 30×30 0.270 2.70 CLM201HZN681MR30 820 25×45 0.220 2.90 CLM201HZN821MQ45 820 30×30 0.220 2.90 CLM201HZN821MR30 820 35×25 0.243 2.90 CLM201HZN821MA25 1000 25×45 0.199 3.25 CLM201HZN102MQ45 1000 30×35 0.199 3.25 CLM201HZN102MR35 1000 35×30 0.199 3.30 CLM201HZN102MA30 1200 30×40 0.166 3.50 CLM201HZN122MR40 1200 35×30 0.166 3.50 CLM201HZN122MA30 1500 30×45 0.144 3.87 CLM201HZN152MR45 1500 35×35 0.144 3.87 CLM201HZN152MA35 1800 30×50 0.120 4.32 CLM201HZN182MR50 1800 35×40 0.120 4.32 CLM201HZN182MA40 2200 35×45 0.098 4.92 CLM201HZN222MA45 2200 40×40 0.098 4.92 CLM201HZN222MU40 2700 35×63 0.080 5.50 CLM201HZN272MA63 2700 40×50 0.080 5.40 CLM201HZN272MU50 3300 35×80 0.065 6.40 CLM201HZN332MA80

200V 250SV 3300 40×63 0.065 6.30 CLM201HZN332MU63 3900 35×80 0.055 6.60 CLM201HZN392MA80 3900 40×63 0.055 6.80 CLM201HZN392MU63 3900 50×50 0.055 8.22 CLM201HZN392MC50 4700 40×80 0.046 8.38 CLM201HZN472MU80 4700 50×63 0.046 9.32 CLM201HZN472MC63 5600 35×105 0.038 8.90 CLM201HZN562MAA5 6800 40×105 0.032 8.65 CLM201HZN682MUA5 6800 50×80 0.032 11.41 CLM201HZN682MC80 7500 50×92 0.029 12.28 CLM201HZN752MC92 8200 50×105 0.026 13.16 CLM201HZN822MCA5 250V 300SV 120 22×20 1.658 0.50 CLM251HZN121MP20 120 22×25 1.520 0.71 CLM251HZN121MP25 150 22×25 1.220 0.90 CLM251HZN151MP25 150 25×20 1.326 0.70 CLM251HZN151MQ20 180 22×25 0.920 1.10 CLM251HZN181MP25 220 22×25 0.754 1.17 CLM251HZN221MP25 220 30×20 0.830 0.90 CLM251HZN221MR20 270 22×30 0.620 1.30 CLM251HZN271MP30 270 25×25 0.620 1.30 CLM251HZN271MQ25 330 22×35 0.550 1.80 CLM251HZN331MP35 330 25×30 0.550 1.80 CLM251HZN331MQ30 330 30×25 0.550 1.80 CLM251HZN331MR25 330 35×20 0.550 1.10 CLM251HZN331MA20 390 22×40 0.510 1.90 CLM251HZN391MP40 390 25×30 0.468 1.91 CLM251HZN391MQ30 390 30×25 0.510 1.90 CLM251HZN391MR25 470 22×45 0.390 2.10 CLM251HZN471MP45 470 25×35 0.390 2.10 CLM251HZN471MQ35 470 30×25 0.350 2.10 CLM251HZN471MR25 560 25×40 0.326 2.30 CLM251HZN561MQ40 560 30×30 0.326 2.30 CLM251HZN561MR30 560 35×25 0.326 2.30 CLM251HZN561MA25 680 25×45 0.268 2.50 CLM251HZN681MQ45 680 30×35 0.268 2.50 CLM251HZN681MR35 680 35×30 0.293 2.50 CLM251HZN681MA30 820 30×40 0.222 2.80 CLM251HZN821MR40 820 35×30 0.222 2.80 CLM251HZN821MA30 1000 30×45 0.182 3.32 CLM251HZN102MR45 1000 35×35 0.182 3.32 CLM251HZN102MA35 1200 35×40 0.166 3.53 CLM251HZN122MA40 1500 35×50 0.133 4.00 CLM251HZN152MA50 1500 40×40 0.133 4.04 CLM251HZN152MU40

250V 300SV 1800 35×63 0.110 4.50 CLM251HZN182MA63 1800 40×50 0.110 4.50 CLM251HZN182MU50 1800 40×63 0.062 4.80 CLM251HZN182MU63 2200 35×63 0.090 4.70 CLM251HZN222MA63 2200 35×80 0.090 4.90 CLM251HZN222MA80 2200 40×63 0.090 4.90 CLM251HZN222MU63 2700 35×80 0.074 5.60 CLM251HZN272MA80 2700 40×63 0.074 5.60 CLM251HZN272MU63 2700 40×80 0.043 6.30 CLM251HZN272MU80 2700 50×50 0.074 6.77 CLM251HZN272MC50 3300 40×80 0.060 7.00 CLM251HZN332MU80 3300 50×63 0.060 7.79 CLM251HZN332MC63 3900 35×105 0.051 7.47 CLM251HZN392MAA5 3900 40×80 0.051 7.35 CLM251HZN392MU80 4700 40×105 0.042 8.88 CLM251HZN472MUA5 4700 50×80 0.042 9.65 CLM251HZN472MC80 5600 50×92 0.036 10.80 CLM251HZN562MC92 6800 50×105 0.029 12.16 CLM251HZN682MCA5 315V 365SV 100 22×25 1.989 0.90 CLM3B1HZN101MP25 120 22×30 1.658 1.00 CLM3B1HZN121MP30 120 25×25 1.658 1.00 CLM3B1HZN121MQ25 150 22×30 1.326 1.10 CLM3B1HZN151MP30 150 25×25 1.326 1.10 CLM3B1HZN151MQ25 180 22×35 1.105 1.20 CLM3B1HZN181MP35 180 25×30 1.105 1.20 CLM3B1HZN181MQ30 180 30×25 1.105 1.20 CLM3B1HZN181MR25 220 22×40 0.904 1.40 CLM3B1HZN221MP40 220 25×35 0.904 1.40 CLM3B1HZN221MQ35 220 30×25 0.904 1.40 CLM3B1HZN221MR25 270 22×45 0.737 1.60 CLM3B1HZN271MP45 270 25×40 0.737 1.60 CLM3B1HZN271MQ40 270 30×30 0.737 1.60 CLM3B1HZN271MR30 330 25×45 0.603 1.80 CLM3B1HZN331MQ45 330 30×30 0.603 1.80 CLM3B1HZN331MR30 330 35×25 0.603 1.80 CLM3B1HZN331MA25 390 25×50 0.510 2.00 CLM3B1HZN391MQ50 390 30×35 0.510 2.00 CLM3B1HZN391MR35 390 35×30 0.510 2.00 CLM3B1HZN391MA30 470 30×40 0.423 2.30 CLM3B1HZN471MR40 470 35×35 0.423 2.30 CLM3B1HZN471MA35 560 30×45 0.355 2.60 CLM3B1HZN561MR45 560 35×35 0.355 2.60 CLM3B1HZN561MA35 680 35×45 0.293 2.90 CLM3B1HZN681MA45

315V 365SV 820 35×50 0.243 3.30 CLM3B1HZN821MA50 1000 35×63 0.218 2.70 CLM3B1HZN102MA63 1200 35×70 0.182 3.20 CLM3B1HZN122MA70 1200 40×50 0.202 2.90 CLM3B1HZN122MU50 1500 35×80 0.153 3.60 CLM3B1HZN152MA80 1500 40×63 0.162 3.40 CLM3B1HZN152MU63 1800 40×80 0.113 4.50 CLM3B1HZN182MU80 350V 400SV 82 22×25 2.022 0.83 CLM351HZN820MP25 100 22×30 1.660 0.90 CLM351HZN101MP30 120 22×30 1.382 1.00 CLM351HZN121MP30 120 25×25 1.382 1.00 CLM351HZN121MQ25 150 22×25 1.110 1.10 CLM351HZN151MP25 150 25×25 1.110 1.10 CLM351HZN151MQ25 150 30×25 1.110 1.10 CLM351HZN151MR25 180 22×40 0.920 1.20 CLM351HZN181MP40 180 25×30 0.920 1.22 CLM351HZN181MQ30 180 30×25 0.920 1.20 CLM351HZN181MR25 220 22×45 0.750 1.44 CLM351HZN221MP45 220 25×35 0.750 1.44 CLM351HZN221MQ35 220 30×25 0.750 1.44 CLM351HZN221MR25 220 35×25 0.750 1.44 CLM351HZN221MA25 270 25×40 0.614 1.66 CLM351HZN271MQ40 270 30×30 0.614 1.66 CLM351HZN271MR30 270 35×25 0.614 1.66 CLM351HZN271MA25 270 35×25 0.614 1.70 CLM351HZN271MA25 330 25×50 0.500 1.90 CLM351HZN331MQ50 330 30×35 0.500 1.90 CLM351HZN331MR35 330 35×30 0.500 1.90 CLM351HZN331MA30 390 25×50 0.425 2.06 CLM351HZN391MQ50 390 30×40 0.425 2.06 CLM351HZN391MR40 390 35×30 0.425 2.06 CLM351HZN391MA30 470 30×50 0.390 2.40 CLM351HZN471MR50 470 35×35 0.390 2.40 CLM351HZN471MA35 560 30×50 0.326 2.60 CLM351HZN561MR50 560 35×40 0.326 2.60 CLM351HZN561MA40 680 35×45 0.293 2.96 CLM351HZN681MA45 680 40×40 0.293 3.00 CLM351HZN681MU40 820 35×50 0.243 3.55 CLM351HZN821MA50 1000 35×63 0.250 3.80 CLM351HZN102MA63 1000 40×50 0.250 3.80 CLM351HZN102MU50 1200 35×80 0.210 4.40 CLM351HZN122MA80 1200 40×63 0.210 4.40 CLM351HZN122MU63 1200 50×50 0.207 5.18 CLM351HZN122MC50 1500 50×63 0.166 6.01 CLM351HZN152MC63

350V 400SV 1800 35×105 0.138 5.79 CLM351HZN182MAA5 1800 40×80 0.138 5.85 CLM351HZN182MU80 1800 50×80 0.138 6.89 CLM351HZN182MC80 2200 40×105 0.113 6.91 CLM351HZN222M15 2200 50×92 0.113 7.79 CLM351HZN222MC92 2700 50×105 0.092 8.80 CLM351HZN272MCA5 400V 450SV   47 22×20 3.530 0.25 CLM401HZN470MP20 47 22×25 3.530 0.47 CLM401HZN470MP25 68 22×25 2.440 0.70 CLM401HZN680MP25 68 25×20 2.930 0.35 CLM401HZN680MQ20 82 22×25 2.000 0.80 CLM401HZN820MP25 100 22×30 1.650 0.90 CLM401HZN101MP30 100 25×25 1.650 0.90 CLM401HZN101MQ25 100 30×20 1.990 0.50 CLM401HZN101MR20 120 22×35 1.380 1.00 CLM401HZN121MP35 120 25×25 1.380 1.02 CLM401HZN121MQ25 150 22×40 1.100 1.20 CLM401HZN151MP40 150 25×30 1.100 1.20 CLM401HZN151MQ30 150 30×25 1.100 1.20 CLM401HZN151MR25 150 35×20 1.330 0.60 CLM401HZN151MA20 180 22×45 0.920 1.40 CLM401HZN181MP45 180 25×30 0.920 1.40 CLM401HZN181MQ30 220 22×50 0.750 1.50 CLM401HZN221MP50 220 25×40 0.750 1.50 CLM401HZN221MQ40 220 30×30 0.750 1.50 CLM401HZN221MR30 270 25×45 0.680 1.70 CLM401HZN271MQ45 270 30×35 0.680 1.70 CLM401HZN271MR35 270 35×30 0.680 1.70 CLM401HZN271MA30 330 30×40 0.550 1.90 CLM401HZN331MR40 330 35×30 0.550 1.90 CLM401HZN331MA30 390 30×45 0.470 2.10 CLM401HZN391MR45 390 35×35 0.470 2.10 CLM401HZN391MA35 470 35×40 0.388 2.39 CLM401HZN471MA40 560 35×45 0.326 2.69 CLM401HZN561MA45 560 40×40 0.326 2.70 CLM401HZN561MU40 680 35×50 0.270 3.00 CLM401HZN681MA50 680 40×50 0.270 3.40 CLM401HZN681MU50 820 35×63 0.222 3.55 CLM401HZN821MA63 820 40×50 0.222 3.40 CLM401HZN821MU50 1000 35×80 0.179 3.60 CLM401HZN102MA80 1000 40×63 0.199 4.20 CLM401HZN102MU63 1000 50×50 0.199 4.76 CLM401HZN102MC50 1200 35×80 0.152 4.52 CLM401HZN122MA80 1200 40×63 0.152 4.52 CLM401HZN122MU63

400V 450SV 1200 50×63 0.166 5.47 CLM401HZN122MC63 1500 35×105 0.122 5.44 CLM401HZN152MAA5 1500 40×80 0.122 5.50 CLM401HZN152MU80 1500 50×80 0.133 6.47 CLM401HZN152MC80 1800 40×105 0.101 6.53 CLM401HZN182MUA5 1800 50×92 0.111 7.35 CLM401HZN182MC92 2200 50×105 0.090 8.43 CLM401HZN222MCA5 420V 470SV 82 22×30 2.430 0.80 CLM421HZN820MP30 100 22×30 2.000 0.90 CLM421HZN101MP30 100 25×25 2.000 0.90 CLM421HZN101MQ25 120 22×35 1.660 1.00 CLM421HZN121MP35 120 25×30 1.660 1.00 CLM421HZN121MQ30 150 22×40 1.330 1.15 CLM421HZN151MP40 150 25×30 1.330 1.15 CLM421HZN151MQ30 150 30×25 1.330 1.15 CLM421HZN151MR25 180 22×45 1.100 1.45 CLM421HZN181MP45 180 25×35 1.100 1.45 CLM421HZN181MQ35 180 30×30 1.100 1.45 CLM421HZN181MR30 220 25×45 0.900 1.50 CLM421HZN221MQ45 220 30×30 0.900 1.50 CLM421HZN221MR30 220 35×25 0.900 1.50 CLM421HZN221MA25 270 25×50 0.740 1.70 CLM421HZN271MQ50 270 30×35 0.740 1.70 CLM421HZN271MR35 270 35×30 0.740 1.70 CLM421HZN271MA30 330 30×45 0.600 1.90 CLM421HZN331MR45 330 35×35 0.600 1.90 CLM421HZN331MA35 390 30×50 0.500 2.10 CLM421HZN391MR50 390 35×40 0.500 2.10 CLM421HZN391MA40 470 35×45 0.420 2.40 CLM421HZN471MA45 560 35×50 0.355 2.70 CLM421HZN561MA50 450V 500SV 33 22×20 6.029 0.20 CLM451HZN330MP20 33 22×25 6.029 0.40 CLM451HZN330MP25 47 22×25 4.230 0.59 CLM451HZN470MP25 47 25×20 4.230 0.30 CLM451HZN470MQ20 56 22×25 3.000 0.70 CLM451HZN560MP25 68 22×30 2.926 0.80 CLM451HZN680MP30 68 30×20 2.926 0.40 CLM451HZN680MR20 82 22×30 2.000 0.80 CLM451HZN820MP30 82 25×25 2.000 0.80 CLM451HZN820MQ25 100 22×35 1.660 0.90 CLM451HZN101MP35 100 25×30 1.660 0.90 CLM451HZN101MQ30 100 30×25 1.989 0.90 CLM451HZN101MR25 100 35×20 1.989 0.50 CLM451HZN101MA20

450V 500SV 120 22×40 1.380 1.00 CLM451HZN121MP40 120 25×30 1.380 1.00 CLM451HZN121MQ30 120 30×25 1.380 1.00 CLM451HZN121MR25 150 22×50 1.100 1.20 CLM451HZN151MP50 150 25×40 1.100 1.20 CLM451HZN151MQ40 150 30×30 1.100 1.20 CLM451HZN151MR30 180 25×40 0.921 1.35 CLM451HZN181MQ40 180 30×30 0.921 1.35 CLM451HZN181MR30 180 35×25 0.921 1.40 CLM451HZN181MA25 220 25×45 0.754 1.55 CLM451HZN221MQ45 220 30×35 0.754 1.55 CLM451HZN221MR35 220 35×30 0.904 1.60 CLM451HZN221MA30 270 30×45 0.680 1.80 CLM451HZN271MR45 270 35×30 0.680 1.80 CLM451HZN271MA30 330 30×50 0.550 2.00 CLM451HZN331MR50 330 35×35 0.553 2.01 CLM451HZN331MA35 390 35×45 0.510 2.20 CLM451HZN391MA45 470 35×45 0.423 2.53 CLM451HZN471MA45 470 40×40 0.423 2.53 CLM451HZN471MU40 560 35×50 0.355 2.50 CLM451HZN561MA50 560 35×63 0.355 2.90 CLM451HZN561MA63 680 35×70 0.226 3.20 CLM451HZN681MA70 680 40×50 0.290 3.15 CLM451HZN681MU50 680 40×63 0.201 3.40 CLM451HZN681MU63 820 40×63 0.243 3.70 CLM451HZN821MU63 820 35×80 0.243 3.80 CLM451HZN821MA80 820 50×50 0.263 4.31 CLM451HZN821MC50 1000 40×80 0.216 4.20 CLM451HZN102MU80 1000 50×63 0.216 4.96 CLM451HZN102MC63 1200 35×105 0.166 4.80 CLM451HZN122MAA5 1200 40×80 0.166 4.85 CLM451HZN122MU80 1200 50×80 0.180 5.71 CLM451HZN122MC80 1500 40×105 0.133 5.81 CLM451HZN152MUA5 1500 50×92 0.144 6.55 CLM451HZN152MC92 1800 50×105 0.120 7.38 CLM451HZN182MCA5 500V 550SV 33 22×25 4.420 0.60 CLM501HZN330MP25 47 22×25 3.500 0.63 CLM501HZN470MP25 56 22×30 2.980 0.70 CLM501HZN560MP30 68 22×35 2.720 0.78 CLM501HZN680MP35 68 25×25 2.720 0.78 CLM501HZN680MQ25 82 22×40 2.455 0.88 CLM501HZN820MP40 82 25×30 2.455 0.88 CLM501HZN820MQ30 82 30×25 2.455 0.90 CLM501HZN820MR25

500V 550SV 100 22×45 2.013 0.99 CLM501HZN101MP45 100 25×35 2.013 0.99 CLM501HZN101MQ35 100 25×40 2.013 1.10 CLM501HZN101MQ40 100 30×30 2.013 1.10 CLM501HZN101MR30 100 35×25 2.013 1.10 CLM501HZN101MA25 120 22×50 1.678 1.13 CLM501HZN121MP50 120 25×40 1.678 1.13 CLM501HZN121MQ40 120 30×30 1.678 1.13 CLM501HZN121MR30 120 30×35 1.678 1.40 CLM501HZN121MR35 120 35×30 1.678 1.40 CLM501HZN121MA30 150 25×45 1.105 1.29 CLM501HZN151MQ45 150 25×50 0.945 1.40 CLM501HZN151MQ50 150 30×35 1.105 1.29 CLM501HZN151MR35 150 30×40 0.926 1.60 CLM501HZN151MR40 150 35×25 1.342 1.29 CLM501HZN151MA25 180 25×50 0.920 1.38 CLM501HZN181MQ50 180 30×40 0.920 1.38 CLM501HZN181MR40 180 35×30 1.119 1.38 CLM501HZN181MA30 180 35×35 1.119 1.60 CLM501HZN181MA35 220 30×45 0.754 1.50 CLM501HZN221MR45 220 30×50 0.654 2.00 CLM501HZN221MR50 220 35×35 0.915 1.50 CLM501HZN221MA35 220 35×40 0.915 1.90 CLM501HZN221MA40 270 35×40 0.746 1.76 CLM501HZN271MA40

500V 550SV 270 35×50 0.746 2.30 CLM501HZN271MA50 270 40×40 0.746 2.40 CLM501HZN271MU40 330 35×45 0.610 1.99 CLM501HZN331MA45 330 40×40 0.610 2.16 CLM501HZN331MU40 390 35×50 0.516 2.22 CLM501HZN391MA50 390 35×63 0.516 2.70 CLM501HZN391MA63 390 40×50 0.516 2.90 CLM501HZN391MU50 470 35×63 0.428 2.58 CLM501HZN471MA63 470 35×70 0.428 3.20 CLM501HZN471MA70 470 40×50 0.428 2.70 CLM501HZN471MU50 470 40×63 0.428 3.40 CLM501HZN471MU63 560 35×80 0.360 3.60 CLM501HZN561MA80 560 40×63 0.360 3.11 CLM501HZN561MU63 560 50×50 0.360 3.52 CLM501HZN561MC50 680 40×80 0.296 4.50 CLM501HZN681MU80 680 35×80 0.296 3.21 CLM501HZN681MA80 680 50×63 0.296 4.07 CLM501HZN681MC63 820 35×105 0.246 3.97 CLM501HZN821MAA5 820 40×80 0.246 3.88 CLM501HZN821MU80 1000 50×80 0.201 5.05 CLM501HZN102MC80 1200 40×105 0.168 5.90 CLM501HZN122MUA5 1200 50×92 0.168 5.74 CLM501HZN122MC92 1500 50×105 0.134 6.65 CLM501HZN152MCA5 2200 50×140 0.121 7.15 CLM501HZN152MCE0

◆RATED RIPPLE CURRENT MULTIPLIERS
      ●Frequency Multipliers

Frequency （HZ）	50	60	120	500	1K	10K
16～100vc	0.93	0.95	1.00	1.05	1.08	1.15
160～550vc	0.75	0.80	1.00	1.20	1.25	1.40

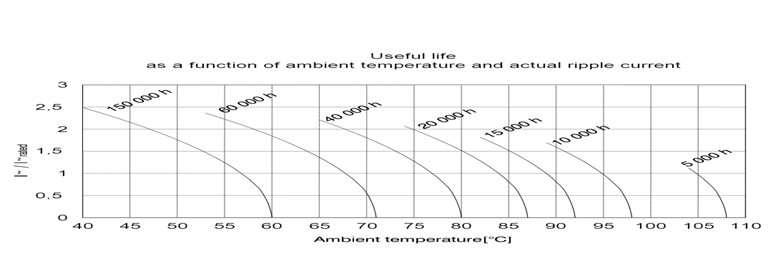

×The endurance of capacitors is reduced with internal heating produced by ripple current at the rate of halving the lifetime with every 5℃ rise
  when long life performance is required in actual use,the rms ripple current has to be reduced
