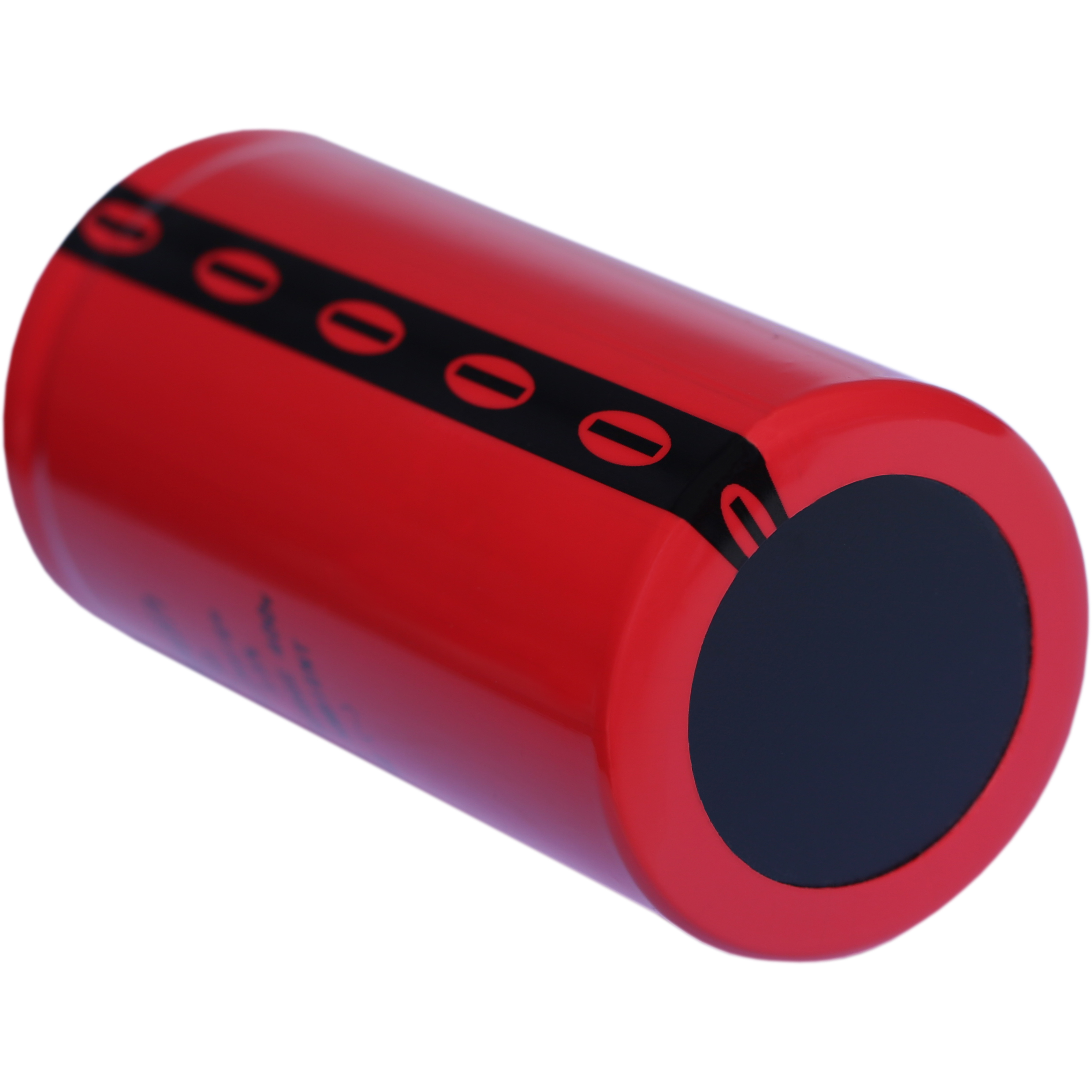

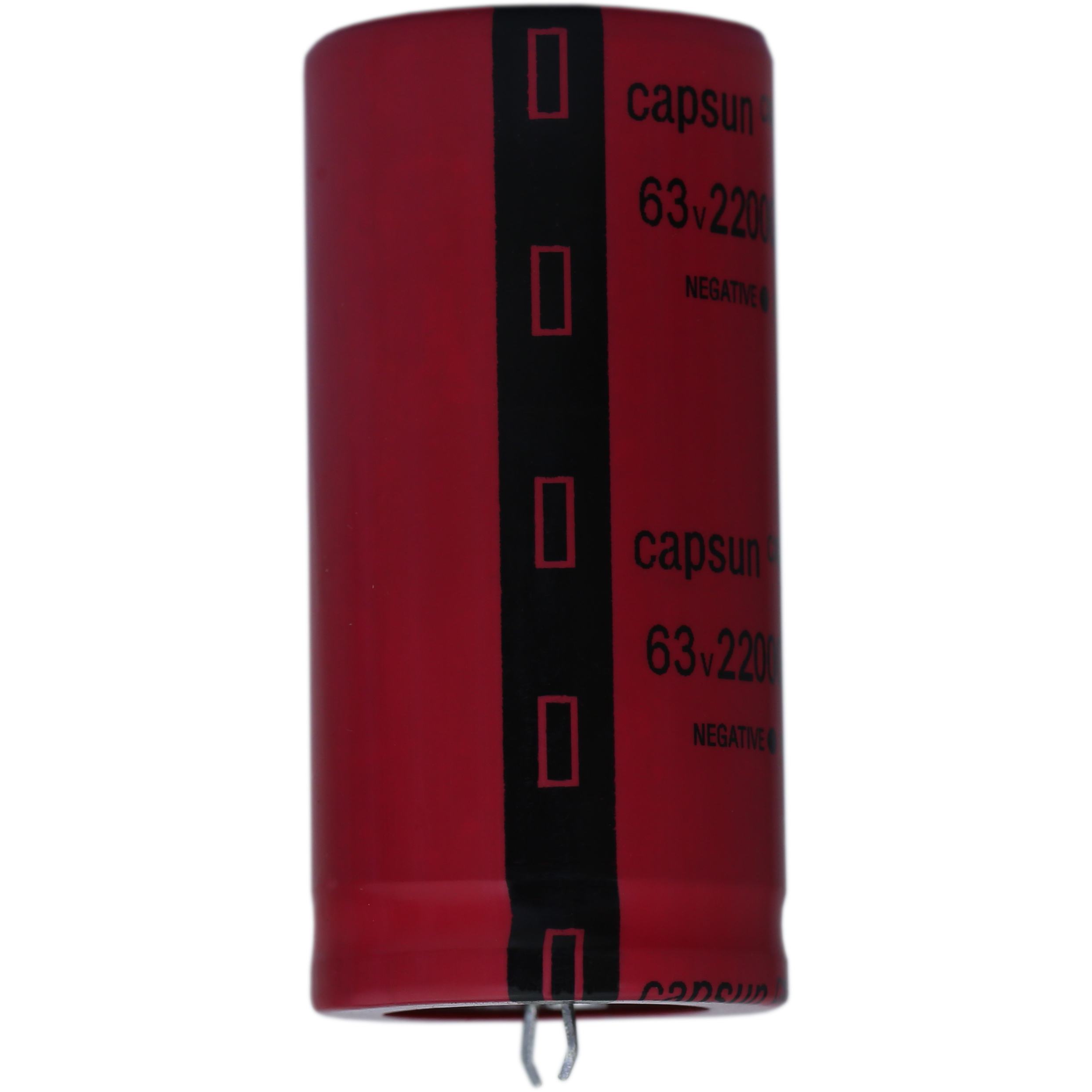

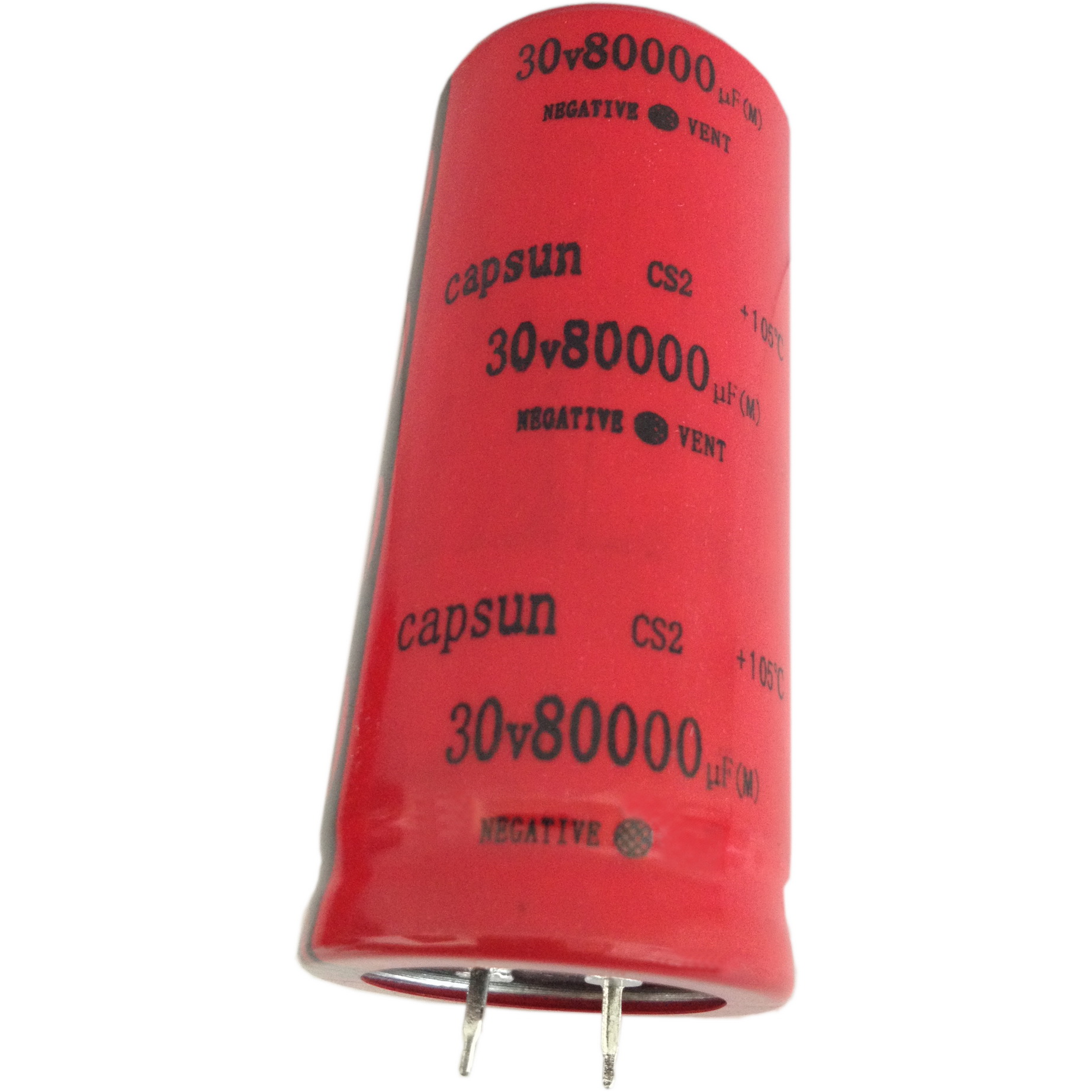

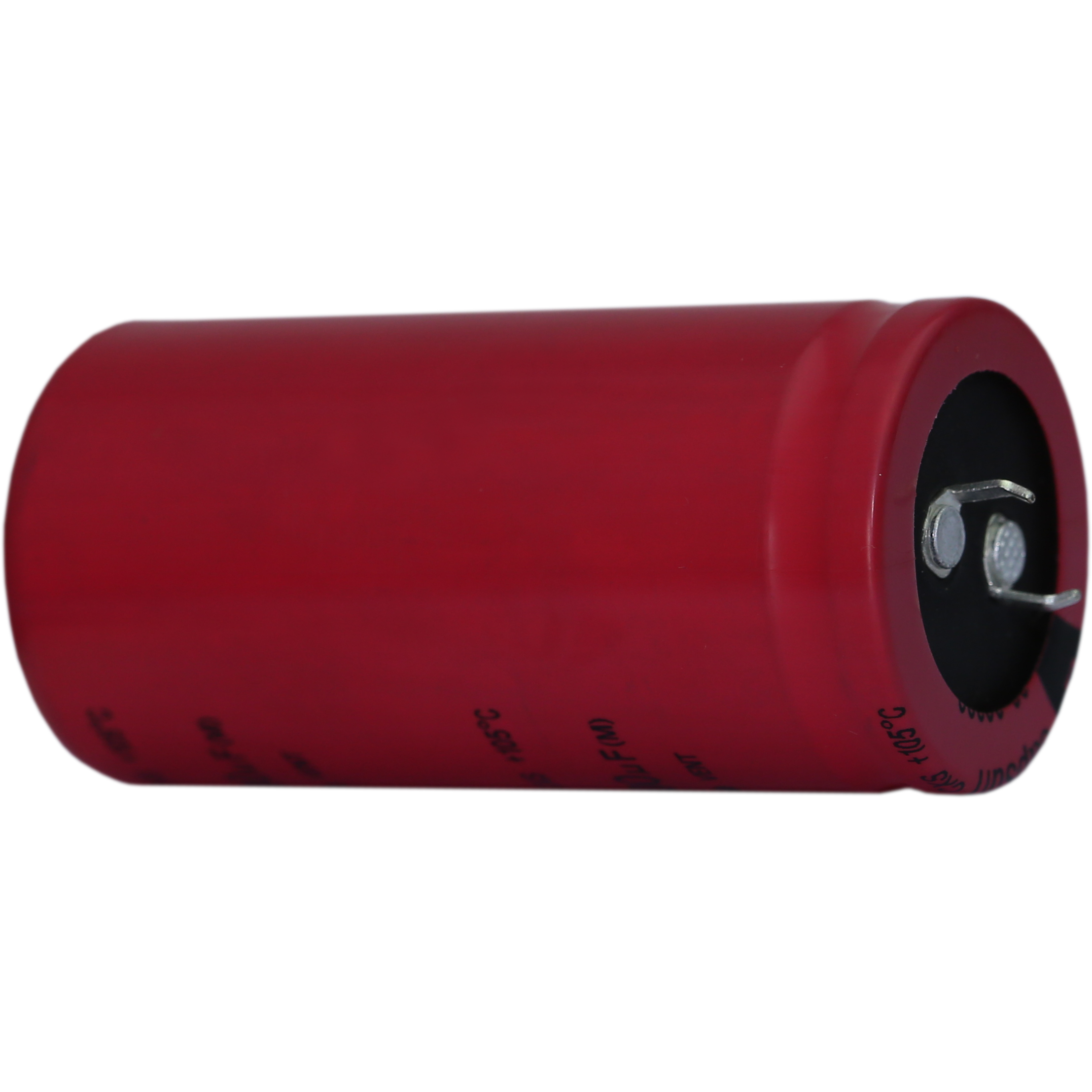

105℃ 8000hours

◆SPECIFIC ATIONS

items		characteristics
Category temperature Range		-25~+85℃(500vdc~600vdc)            -25~+105℃(16vdc~450vdc)
Rated voltage Range		16~600VDC
Capacitance Tolerance		± 20%（M）                                                           20℃、120HZ
Leakage Current		I=3√CV or 5mA,whichever is smaller） I: Where, I : Max. leakage current（µA）、C: Nominal capacitance（µF）、Rated voltage (V)at 20℃after 5 minutes)
Dissipation Factor（MAX）		≦Specifications
Low Temperature characteristics		Rated voltage（Vdc） 16v～400V 420V～600V Z(-25℃)/Z(+20℃) 4 8
Endurance	The following specifications shall be satisfied when the capacitors are restored to 20℃ after subjected to DC voltage with the rated ripple current is applied (the peak voltage shall not exceed the rated voltage) for 8,000 hours at 105℃
	Capacitance change		≤±20% of the initial value
	D.F. (tanδ)		≤of the initial specified value 200%(≧500Vdc:250%≦)
	Leakage current		≤The initial specified value
Shelf Life	The following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1000 hours at 105℃ without voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4
	Capacitance change		≤±20% of the initial value
	D.F. (tanδ)		≤200% of the initial specified value
	Leakage current		≤The initial specified value

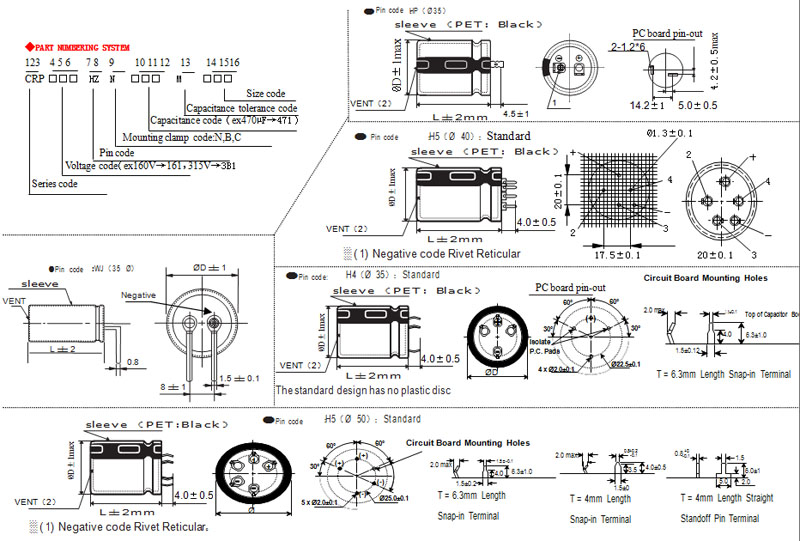

SRANDRAD RATINGS

WV [Vdc] cap [μF] Case size D x L [mm] Tanδ 120Hz 20℃ Ripple current Ams/105℃, 120Hz Par t NO. 16V 39000 35×40 0.5 5.10 CS2161HZD393MA40 47000 40×40 0.5 5.50 CS2161HZT473MU40 56000 35×50 0.5 6.00 CS2161HZD563MA50 68000 35×63 0.5 6.62 CS2161HZD393MA63 68000 40×50 0.5 7.29 CS2161HZT683MU50 82000 40×63 0.5 7.66 CS2161HZT823MU63 100000 35×80 0.5 8.03 CS2161HZD104MA80 120000 35×105 0.5 8.71 CS2161HZD124MAA5 120000 40×80 0.5 8.79 CS2161HZT124MU80 120000 50×80 0.5 9.02 CS2161HZT124MC80 150000 40×105 0.5 9.88 CS2161HZT154MUA5 150000 50×63 0.5 10.15 CS2161HZT154MC63 180000 50×80 0.5 11.02 CS2161HZT184MC80 220000 50×92 0.5 11.71 CS2161HZT224MC92 250000 50×105 0.5 12.31 CS2161HZT254MCA5 25V 27000 35×40 0.4 4.80 CS2250HZD273MA40 33000 35×50 0.4 5.50 CS2250HZD333MA50 33000 40×40 0.4 5.50 CS2250HZT333MU40 47000 35×63 0.4 6.56 CS2250HZD473MA63 47000 40×50 0.4 6.47 CS2250HZT473MU50 56000 35×80 0.4 7.25 CS2250HZD563MA80 56000 40×63 0.4 7.17 CS2250HZT563MU63 82000 35×105 0.4 8.58 CS2250HZD823MAA5 82000 40×80 0.4 8.68 CS2250HZT823MU80 82000 50×50 0.4 9.20 CS2250HZT823MC50 100000 40×105 0.4 9.76 CS2250HZT104MUA5 100000 50×63 0.4 10.02 CS2250HZT104MC63 120000 50×80 0.4 10.93 CS2250HZT124MC80 150000 50×92 0.4 11.70 CS2250HZT154MC92 180000 50×105 0.4 12.42 CS2250HZT184MCA5 35V 18000 35×40 0.35 4.30 CS2350HZD183MA40 22000 35×50 0.35 5.00 CS2350HZD223MA50 22000 40×40 0.35 5.00 CS2350HZT223MU40 27000 35×63 0.35 5.53 CS2350HZD273MA63 27000 40×50 0.35 5.44 CS2350HZT273MU50 33000 40×63 0.35 6.61 CS2350HZT333MU63 39000 35×80 0.35 6.52 CS2350HZD393MA80 47000 35×105 0.35 8.07 CS2350HZD473MAA5 47000 40×80 0.35 7.79 CS2350HZT473MU80 47000 50×50 0.35 8.25 CS2350HZT473MAC0 56000 50×63 0.35 9.00 CS2350HZT563MC63 68000 40×105 0.35 9.27 CS2350HZT683MUA5 68000 50×80 0.35 10.07 CS2350HZT683MC80 82000 50×92 0.35 10.89 CS2350HZT823MC92 100000 50×105 0.35 11.75 CS2350HZT104MCA5 50V 10000 35×40 0.30 4.00 CS2500HZD103MA40 15000 35×50 0.30 4.80 CS2500HZD153MA50 15000 40×40 0.30 4.80 CS2500HZT153MU40 18000 35×63 0.30 5.27 CS2500HZD183MA63 22000 40×50 0.30 5.15 CS2500HZT223MU50 27000 35×80 0.30 6.16 CS2500HZD273MA80 27000 40×63 0.30 6.05 CS2500HZT273MU63 33000 35×105 0.30 7.23 CS2500HZD333MA5 33000 50×50 0.30 7.75 CS2500HZT333MC50 39000 40×80 0.30 7.55 CS2500HZT393MU80 39000 50×63 0.30 8.40 CS2500HZT393MC63 47000 40×105 0.30 8.18 CS2500HZD473MUA5 47000 50×63 0.30 9.19 CS2500HZT473MC63 56000 50×92 0.30 9.79 CS2500HZT563MC92 68000 50×105 0.30 10.42 CS2500HZT683MCA5

63V 6800 35×40 0.25 3.60 CS2630HZD682MA40 12000 35×50 0.25 4.40 CS2630HZD123MA50 12000 40×40 0.25 4.52 CS2630HZT123MU40 15000 35×63 0.25 4.92 CS2630HZD153MA63 15000 40×50 0.25 4.80 CS2630HZT153MU50 18000 35×80 0.25 5.79 CS2630HZD183MA80 18000 40×63 0.25 5.39 CS2630HZT183MU63 22000 50×50 0.25 6.76 CS2630HZT223MC50 27000 35×105 0.25 6.53 CS2630HZD273MAA5 27000 40×80 0.25 6.59 CS2630HZT273MU80 27000 50×63 0.25 7.34 CS2630HZT273MC63 33000 50×80 0.25 8.00 CS2630HZT333MC80 39000 40×105 0.25 7.53 CS2630HZT393MUA5 39000 50×92 0.25 8.48 CS2630HZT393MC92 47000 50×63 0.25 8.99 CS2630HZT473MC63 80V 4700 35×40 0.20 3.30 CS2800HZD472MA40 6800 35×50 0.20 3.90 CS2800HZD682MA50 6800 40×40 0.20 3.90 CS2800HZT682MU40 8200 35×63 0.20 4.39 CS2800HZD822MA63 8200 40×50 0.20 4.29 CS2800HZT822MU50 10000 35×80 0.20 4.88 CS2800HZD103MA80 10000 40×50 0.20 4.73 CS2800HZT103MU50 12000 50×50 0.20 6.03 CS2800HZT123MC50 15000 35×105 0.20 6.13 CS2800HZD153MAA5 15000 40×80 0.20 5.97 CS2800HZT153MU80 15000 50×63 0.20 6.65 CS2800HZT153MC63 18000 50×80 0.20 7.29 CS2800HZT183MC80 22000 40×105 0.20 6.95 CS2800HZT223MUA5 22000 50×92 0.20 7.83 CS2800HZT223MC92 27000 50×105 0.20 8.38 CS2800HZT273MCA5 100V 3300 35×40 0.20 3.20 CS2101HZD332MA40 4700 35×50 0.20 3.80 CS2101HZD472MA50 4700 40×40 0.20 3.80 CS2101HZD472MU40 5600 35×63 0.20 4.06 CS2101HZD562MA63 6800 40×50 0.20 4.57 CS2101HZT682MU50 8200 35×80 0.20 5.15 CS2101HZD822MA80 8200 40×63 0.20 5.02 CS2101HZT822MU63 8200 50×50 0.20 6.14 CS2101HZT822MC50 10000 35×105 0.20 6.38 CS2101HZD103MAA5 12000 40×80 0.20 6.44 CS2101HZT123MU80 12000 50×63 0.20 7.17 CS2101HZT123MC63 15000 40×105 0.20 7.37 CS2101HZT153MUA5 15000 50×80 0.20 8.01 CS2101HZT153MC80 18000 50×92 0.20 8.64 CS2101HZT183MC92 22000 50×105 0.20 9.32 CS2101HZT223MCA5

125V 1800 35×35 0.20 5.90 CS2125HZT182MA35 2200 35×40 0.20 6.69 CS2125HZT222MA40 2700 35×50 0.20 7.60 CS2125HZT272MA50 2700 40×40 0.20 7.70 CS2125HZT272MU40 3300 35×63 0.20 8.80 CS2125HZT332MA63 3300 40×50 0.20 8.80 CS2125HZT332MU50 3900 35×50 0.20 10.20 CS2125HZT392MA50 3900 40×63 0.20 10.20 CS2125HZT392MU63 4700 40×80 0.20 8.50 CS2125HZT472MU80 5600 40×80 0.20 11.70 CS2125HZT562MU80 5600 50×50 0.20 9.50 CS2125HZT562MC50 6800 35×105 0.20 12.7 CS2125HZT682MCA5 8200 50×63 0.20 12.5 CS2125HZT822MC63 10000 40×105 0.20 13.8 CS2125HZT103MUA5 12000 50×92 0.20 18.1 CS2125HZT122MC92 15000 50×105 0.20 19.7 CS2125HZT152MCA5 180V 1500 40×45 0.15 3.99 CS2181HZY152MU45 2200 40×55 0.15 4.80 CS2181HZY222MU55 2200 42×50 0.15 4.49 CS2181LIN222MV50 2700 40×65 0.15 5.37 CS2181HZY272MU65 2700 50×50 0.15 4.84 CS2181LIN272MC50 3300 42×65 0.15 5.56 CS2181LIN332MV65 3900 42×75 0.15 6.03 CS2181LIN392MV75 3900 50×60 0.15 5.87 CS2181LIN392MC60 4700 50×70 0.15 6.42 CS2181LIN472MC70 250V 1000 40×45 0.15 3.26 CS2251HZY102MU45 1500 40×55 0.15 3.96 CS2251HZY152MU55 1800 40×65 0.15 4.38 CS2251HZY182MU65 1800 42×55 0.15 4.06 CS2251LIN182MV55 1800 50×50 0.15 3.95 CS2251LIN182MC50 2200 42×65 0.15 4.54 CS2251LIN222MV65 2700 42×80 0.15 5.02 CS2251LIN272MV80 2700 50×60 0.15 4.88 CS2251LIN272MC60 3300 50×70 0.15 5.38 CS2251LIN332MC70 315V 680 40×60 0.15 3.35 CS2315HZY681MU60 820 40×70 0.15 3.96 CS2315HZY821MU70 820 50×60 0.15 4.33 CS2315LIN821MC60 1000 40×80 0.15 4.51 CS2315HZY102MU80 1200 40×80 0.15 4.95 CS2315HZY122MU80 1200 50×65 0.15 5.21 CS2315LIN122MC65 1500 50×75 0.15 5.72 CS2315LIN152MC75 1800 42×90 0.15 5.65 CS2315LIN272MV90 2200 50×70 0.15 5.26 CS2315LIN272MC70 2700 50×80 0.15 5.51 CS2315LIN332MC80

400V 470 40×45 0.15 2.92 CS2401HZY471MU45 680 40×60 0.15 3.50 CS2401HZY681MU60 680 42×60 0.15 3.53 CS2401LIN681MV60 820 40×65 0.15 3.87 CS2401HZY821MU65 820 50×50 0.15 4.03 CS2401LIN821MC50 1000 40×75 0.15 4.33 CS2401HZY102MU75 1200 40×75 0.15 4.73 CS2401HZY122MU75 1200 50×60 0.15 4.92 CS2401LIN122MC60 1500 50×70 0.15 5.48 CS2401LIN152MC70 420V 390 40×45 0.15 2.56 CS2421HZY391MU45 560 40×55 0.15 3.04 CS2421HZY561MU55 680 42×55 0.15 3.39 CS2421LIN681MV55 820 40×70 0.15 3.72 CS2421HZY821MU70 820 42×65 0.15 3.76 CS2421LIN821MV65 820 50×50 0.15 3.87 CS2421LIN821MC50 1000 42×80 0.15 4.15 CS2421LIN102MV80 1000 50×60 0.15 4.31 CS2421LIN102MC60 1200 50×70 0.15 4.71 CS2421LIN122MC70 450V   330 40×45 0.15 2.35 CS2451HZY331MU45 470 40×55 0.15 2.79 CS2451HZY471MU55 560 40×65 0.15 3.07 CS2451HZY561MU65 560 42×55 0.15 3.07 CS2451LIN561MV55 680 42×65 0.15 3.43 CS2451LIN681MV65 680 50×50 0.15 3.50 CS2451LIN681MC50 820 42×80 0.15 3.75 CS2451LIN821MV80 820 50×60 0.15 3.90 CS2451LIN821MC60 1000 50×70 0.15 4.30 CS2451LIN102MC70 500V 330 40×45 0.20 2.96 CS2501HZY331MU45 470 40×60 0.20 3.50 CS2501HZY471MU60 470 42×55 0.20 3.54 CS2501LIN471MV55 560 40×65 0.20 3.87 CS2501HZY561MU65 680 42×65 0.20 4.31 CS2501LIN681MV65 680 50×50 0.20 4.43 CS2501LIN681MC50 820 42×80 0.20 4.72 CS2501LIN821MV80 820 50×60 0.20 4.91 CS2501LIN821MC60 1000 50×70 0.20 5.40 CS2501LIN102MC70 550V 220 40×45 0.20 2.33 CS2551HZY221MU45 270 40×55 0.20 2.57 CS2551HZY271MU55 330 42×55 0.20 2.87 CS2551LIN331MV55 390 40×65 0.20 3.12 CS2551HZY391MU65 390 42×75 0.20 3.15 CS2551LIN391MV75 390 50×50 0.20 3.24 CS2551LIN391MC50 560 42×80 0.20 3.77 CS2551LIN561MV80 560 50×60 0.20 3.92 CS2551LIN561MC60 680 50×70 0.20 4.31 CS2551LIN681MC70 820 50×80 0.20 4.48 CS2551LIN821MC80 600V 180 40×45 0.20 2.11 CS2601HZY181MU45 220 40×55 0.20 2.32 CS2601HZY221MU55 270 42×60 0.20 2.59 CS2601LIN271MV60 330 40×65 0.20 2.87 CS2601HZY331MU65 390 42×65 0.20 3.15 CS2601LIN391MV65 390 50×50 0.20 3.24 CS2601LIN391MC50 470 42×80 0.20 3.45 CS2601LIN471MV80 470 50×60 0.20 3.59 CS2601LIN471MC60 560 50×70 0.20 3.91 CS2601LIN561MC70

◆RATED RIPPLE CURRENT MULTIPLIERS
      ●Frequency Multipliers

Frequency （HZ）	50	120	300	1K	10K	50K
16～250vdc	0.81	1.00	1.17	1.32	1.45	1.50
315～450vdc	0.77	1.00	1.16	1.30	1.41	1.43
500～600vdc	0.70	1.00	1.16	1.30	1.41	1.43








×The endurance of capacitors is reduced with internal heating produced by ripple current at the rate of halving the lifetime with every 5℃ rise when long life performance is required in actual use, the rms ripple current has to be reduced
