-40~105℃ 5Million times charging

◆SPECIFIC ATIONS

items		characteristics
Category temperature Range		-40～+105℃
Rated voltage Range		330V～500V
Capacitance Tolerance		±5%                                                                    20℃、120HZ
Leakage Current		I=1Xc(After 5 minutes application of voltage) I: Where, I : Max. leakage current（µA）、C: Nominal capacitance（µF）、Rated voltage (V)at 20℃after 5 minutes)
Dissipation Factor（MAX）		Rated capacitance（µF） 30～600µF 601～2500µF 20℃、120HZ tanδ 0.07 0.10
charge and discharge	Charge and discharge at rated voltage at 15~35℃ in every 1seconds for 30000000times via Xe flash tube with discharge resistanceof0.7～1.0Ω
	Charging voltage			Rated voltage
	discharge voltage			Rated voltage≤0.3
	Charge and discharge frequency			see listing
	Charge and discharge resistor			see listing
	Capacitance change		≤±20% of the initial value
	D.F. (tanδ)		≤200% of the initial specified value
	Leakage current		≤The initial specified value
Shelf Life	The following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1000 hours at 105℃ without voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4
	Capacitance change		≤±20% of the initial value
	D.F. (tanδ)		≤200% of the initial specified value
	Leakage current		≤The initial specified value


 SRANDRAD RATINGS

Capacity (µF)	Voltage (Vdc)	ESR (Ω)120HZ	Leakage current (µA)	Size (mm)
220	330	0.469	220	22×30
300	330	0.663	300	25×35
300	330	0.663	300	30×25
350	330	0.568	350	25×40
350	330	0.568	350	30×30
400	330	0.497	400	25×40
400	330	0.497	400	30×30
500	330	0.398	500	25×50
500	330	0.398	500	30×35
600	330	0.332	600	30×40
700	330	0.284	700	35×40
800	330	0.249	800	35×40
900	330	0.221	900	35×50
900	330	0.199	900	35×45
1000	330	0.199	1000	35×50
1000	330	0.166	1000	40×40
1200	330	0.166	1200	35×50
1500	330	0.133	1500	35×63
2000	330	0.099	2000	35×80
2700	330	0.074	2700	40×80
50	360	1.92	48	25×25
60	360	1.54	60	25×30
80	360	1.15	80	25×35
100	360	0.92	100	25×40
120	360	0.77	120	30×30
150	360	0.61	150	25×50
200	360	0.46	200	30×50

220	360	0.41	220	30×35
250	360	0.37	250	25×50
300	360	0.31	300	30×35
330	360	0.31	330	30×35
470	360	0.21	470	30×45
680	360	0.21	680	35×50
820	360	0.18	820	35×55
1000	360	0.14	1000	35×60
1200	360	0.12	1200	35×65
1200	360	0.12	1200	40×60
1800	360	0.11	1800	35×75
1800	360	0.11	1800	40×65
2200	360	0.10	2200	35×75
2200	360	0.10	2200	40×70
2500	360	0.08	2500	35×80
2500	360	0.08	2500	40×75
30	450	3.07	30	25×25
40	450	2.30	40	22×40
50	450	1.84	50	25×35
60	450	1.54	60	25×40
80	450	1.15	80	25×50
100	450	1.08	100	30×40
120	450	0.77	120	30×50
150	450	0.61	150	35×50
180	450	0.52	180	35×60
220	450	0.45	220	35×65
330	450	0.32	330	35×70

600	500	0.332	600	35×92
800	500	0.249	800	35×115
900	500	0.221	900	50×80
1000	500	0.199	1000	50×100
1200	500	0.166	1200	50×120

1300	500	0.153	1300	50×120
1600	500	0.124	1600	50×135
1700	500	0.117	1700	50×150
2100	500	0.095	2100	50×160
2500	500	0.072	2500	50×180

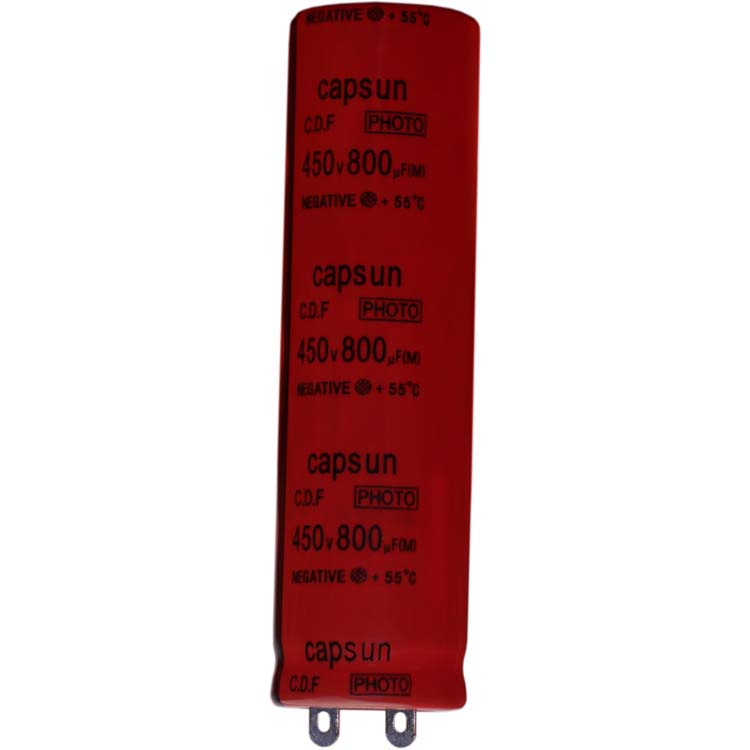

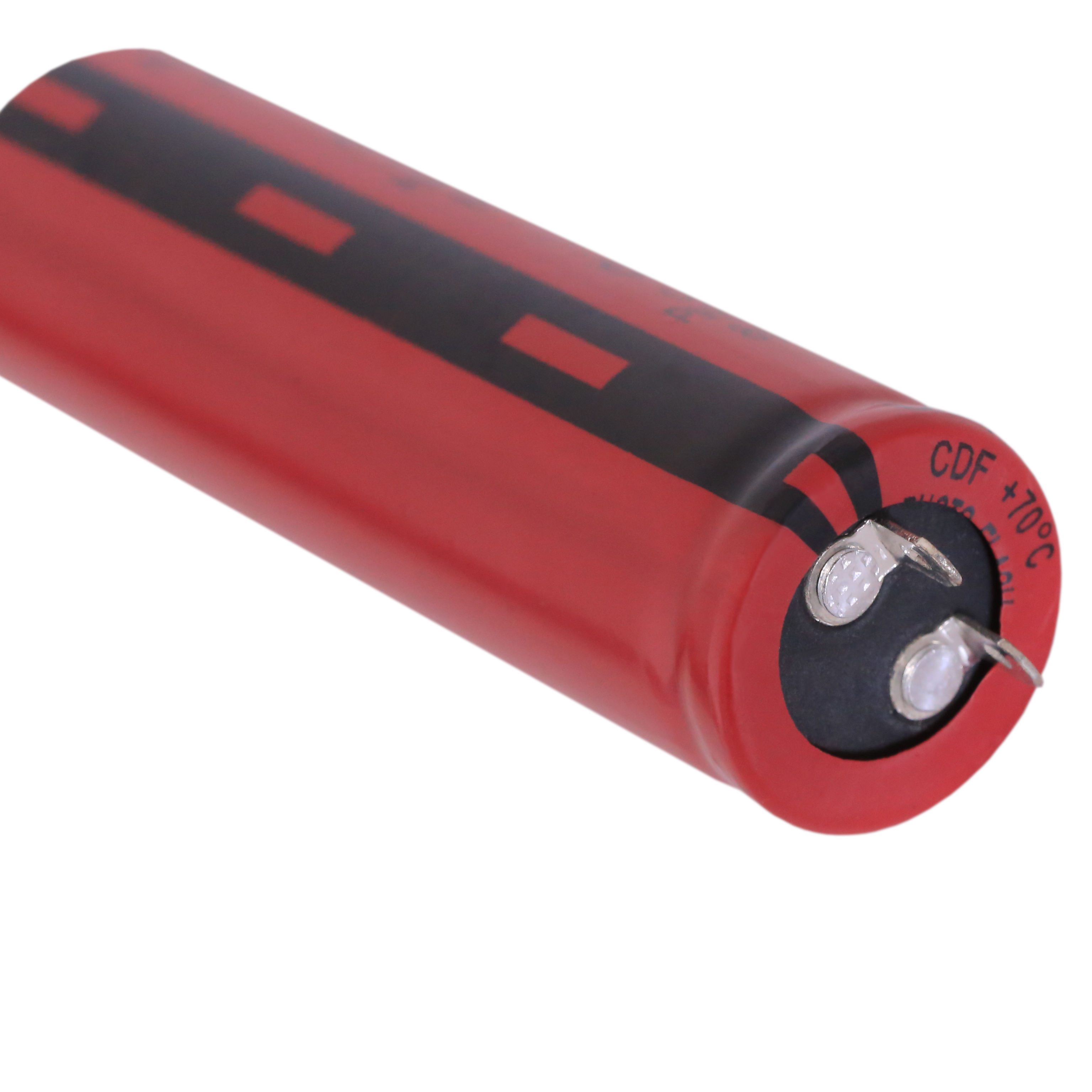

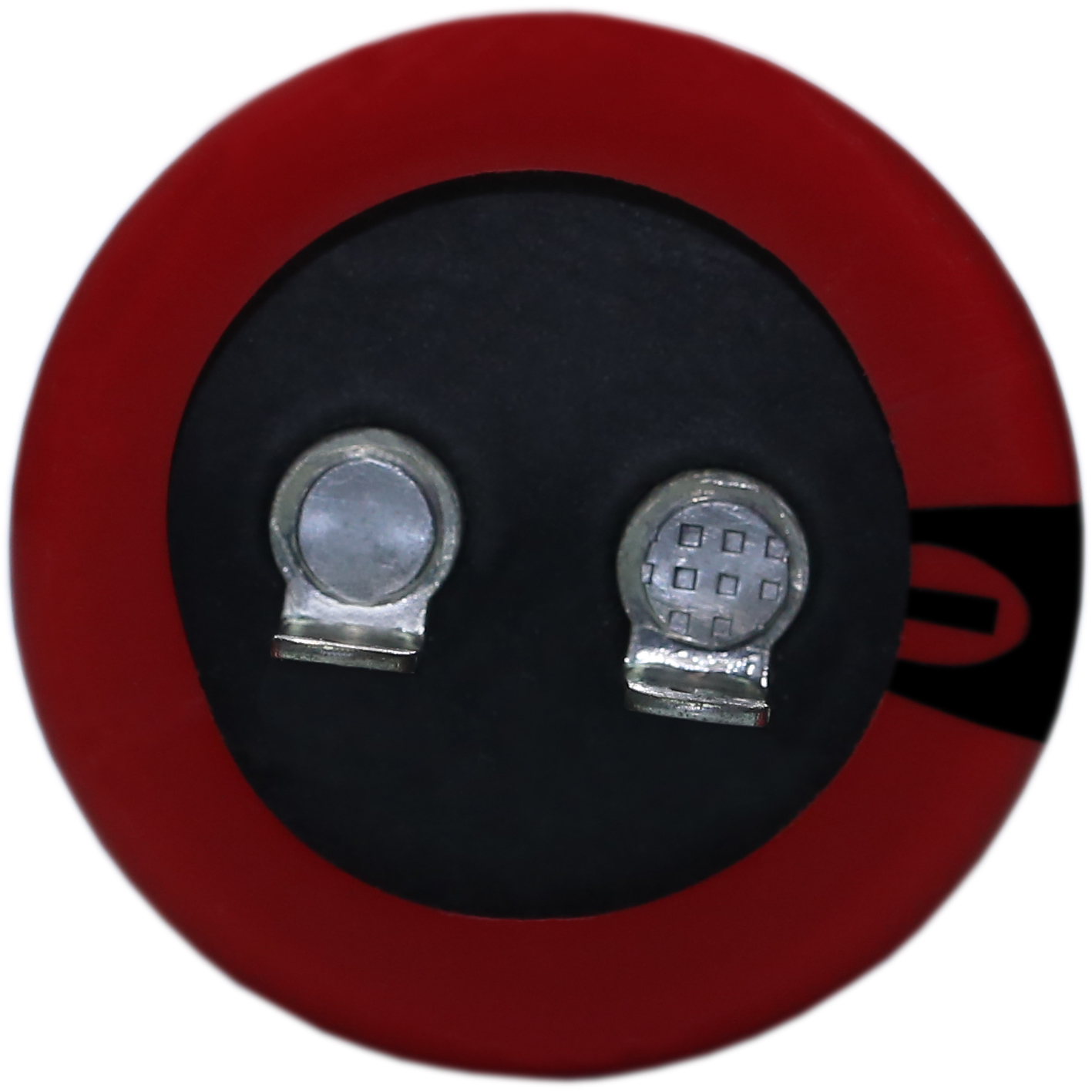

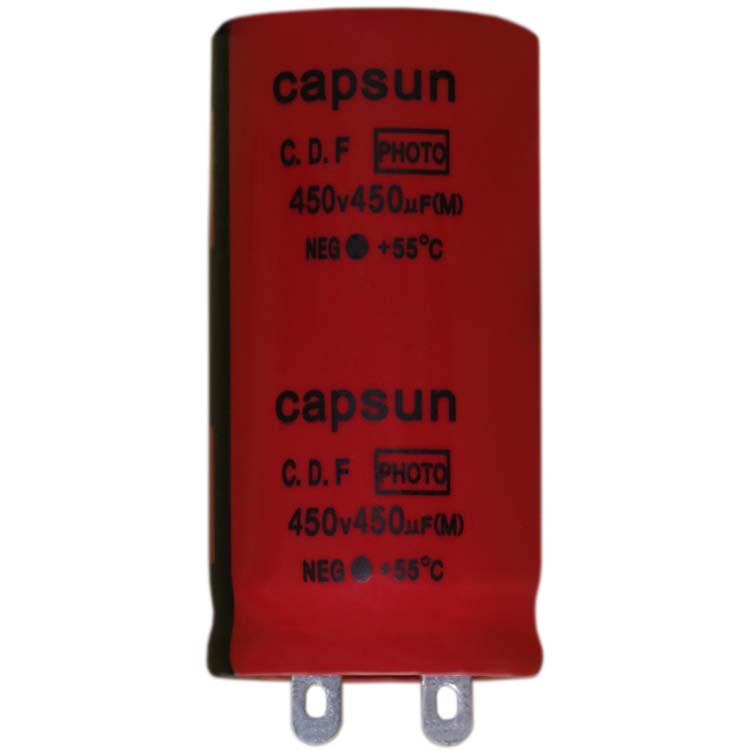

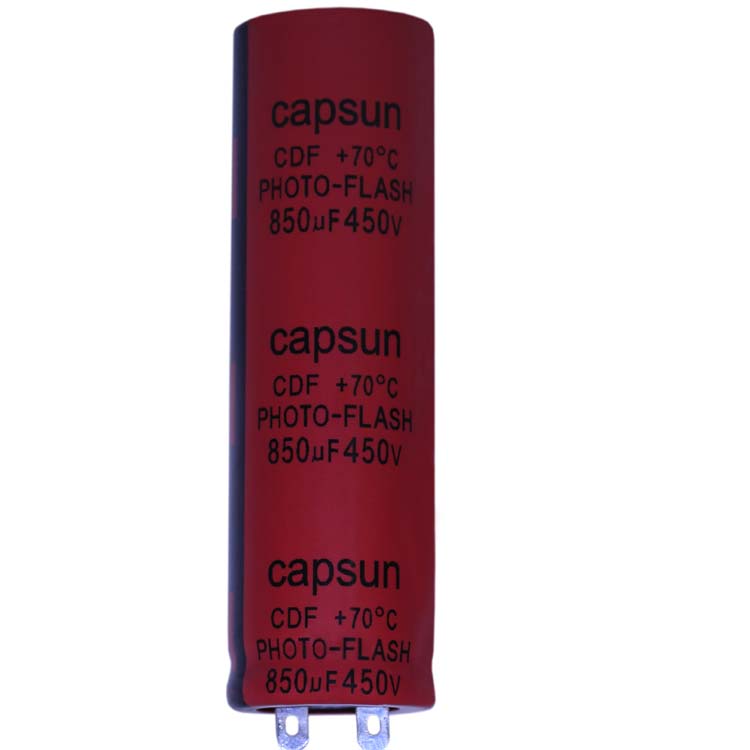

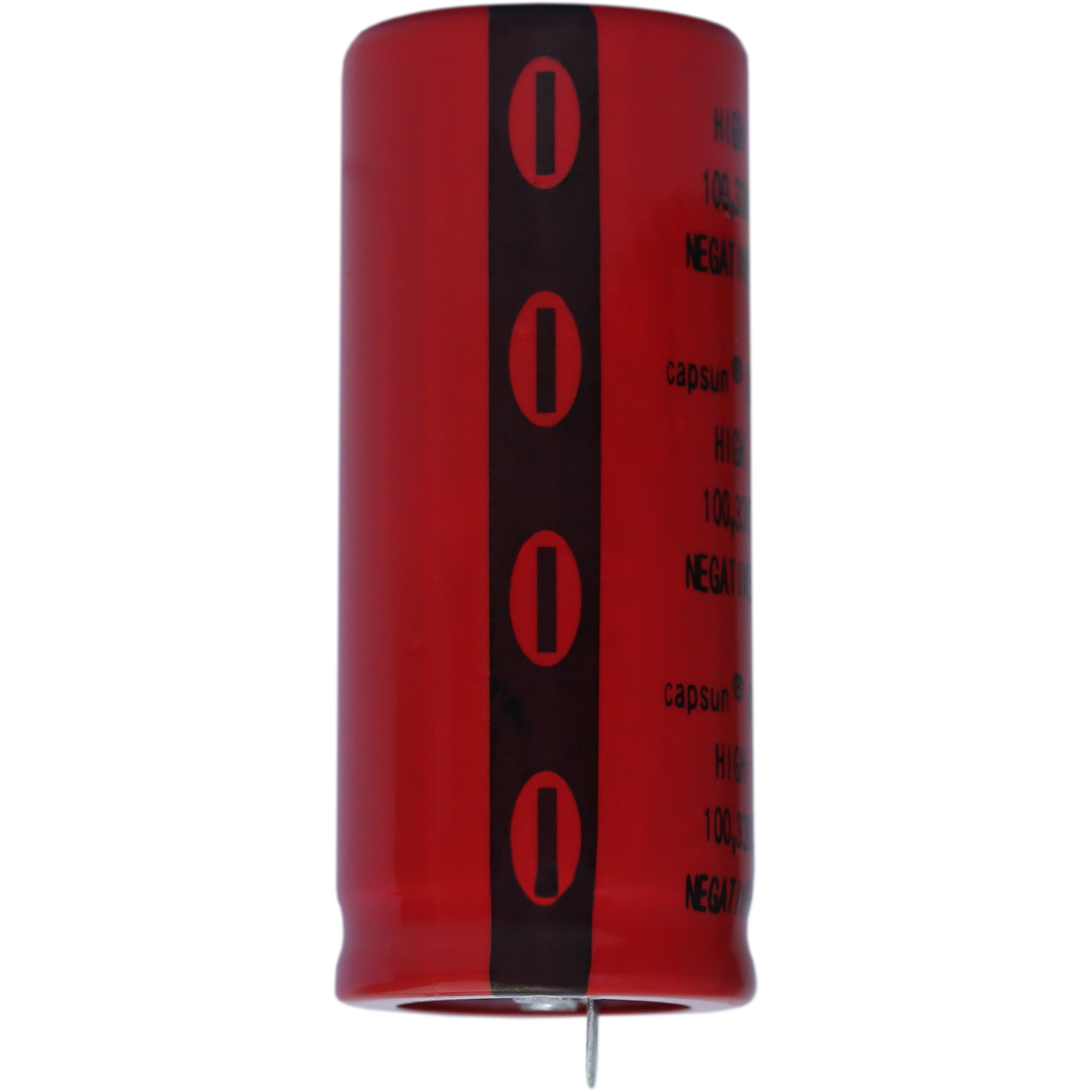

capsun flash series
1、SPF over voltage is only 330WV, this year added 310V, 360V two kinds of voltage. Because of particularity of camera design. Especially digital camera size thinner, smaller and smaller, if the guests have special or super small size requirements,  For the details, please contact representative of capsun；

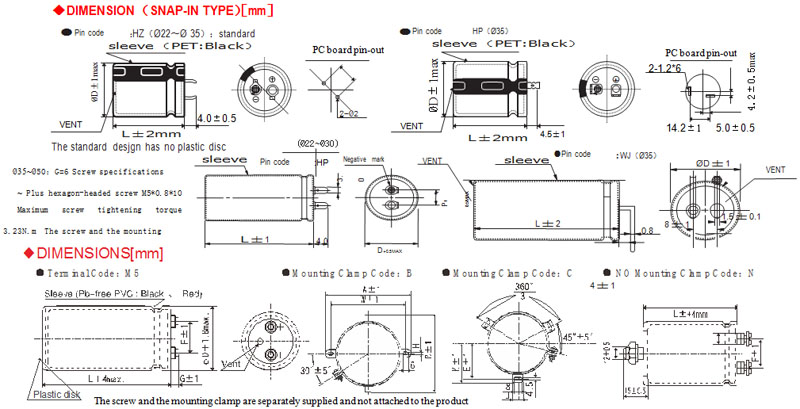

2、capsun SPF series, CDF series for studio, digital camera, professional photographic equipment, flash capacitor。Before the flash capacitor installation ways mainly have the lead type, lug type，Now added can be installed in many ways, for example（snap-in type、long lug type, Multi pin type ,screw type）；
For example：Highway bayonet shooting,Infrared security bayonet,Field pulse signal,Laser pulse power，Also taking into account the larger current,use Screw type Installation For example, 2500 μ F360WV diameter 50mm, height 75mm flash capacitos。

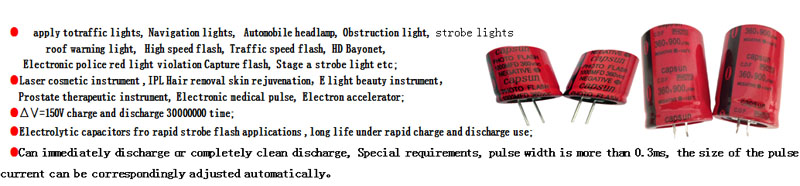

3、capsun  Electronics SPF、CDF series long life under rapid charge and discharge use Widely used in traffic lights，apply totraffic lights, Navigation lights, Automobile headlamp, Obstruction light, strobe lights roof warning light, High speed flash, Traffic speed flash, HD Bayonet,Electronic police red light violation Capture flash, Stage a trobe light etc Laser cosmetic instrument IPL hair removal skin rejuvenation E light beauty instrument Prostate therapeutic instrument Electronic medical pulse
Electron accelerator etc，F(xiàn)lash life (charge discharge according to 0.3WV) 30000000 time，F(xiàn)or special products,The life span of a 100 million times；For example, 50 μ F360V can also be used in special boost circui. Adopt the lastest struct 6ure design of capsun, adopt the electrolyte system from MATSUSHITA,suitable for high ripple and high current circuit, with better performance than CDF series of RUBYCON，The electrical parameters of the total beyond peer

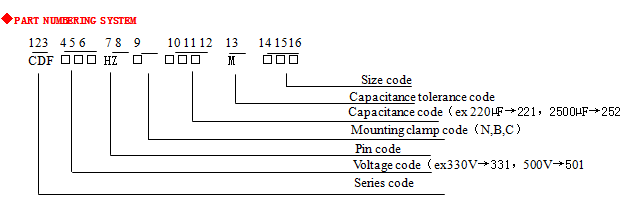

4、A、Because SPF and CDF are special capacitor，So the product approval, there will be a unique code to the guests；B. Because of the difference between the circuit of charge and discharge of the discharge, sometimes need to ask for the circuit diagram of Because of thedifference between the circuit of charge and discharge of the discharge ,sometimes need to ask for the circuit diagram，As a reference design；
SPF for 2-4 times / sec ,spec 360WV, 400WV, 450WV, Apply to rising voltage circuit closed loop
   CDF for ≧5 times/sec, Highest 11 times / sec，spec360WV、450WV,500WV Apply to rising voltage circuit closed loop, Can immediately discharge or completely clean discharge, Special requirements, pulse width is more than 0.3ms, the size of the pulse current can be correspondingly adjusted automatically

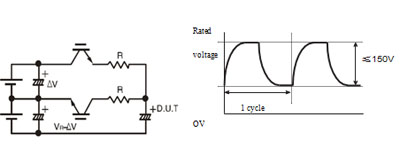

       charge and discharge projects:
A DC voltage charging and AC voltage charging and Discharge for the flash tube type high pressure xenon lamp
5、Suitable for high ripple circuit, with life of over 30 million times or guarantee period of 5 years, adopt design from and abroad electrolyte system from MATSUSHITA with parameter better than abroad CAPACITOR
Note: the flash capacitor The Life And Charge discharge Frequency relationship，And Capacitor The Parallel circuit Circuit closed loop same relationship，and charge discharge Frequency ESR same relationship.
