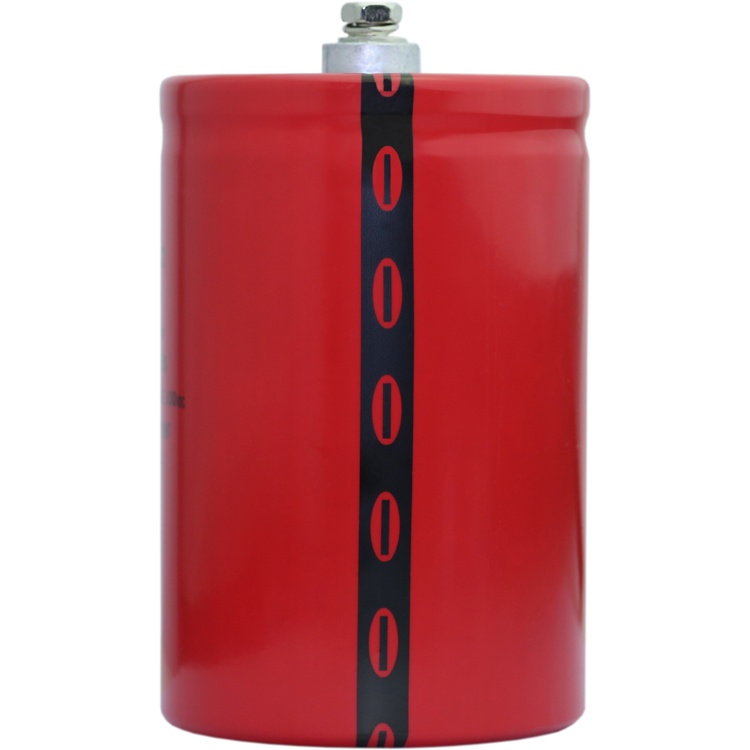

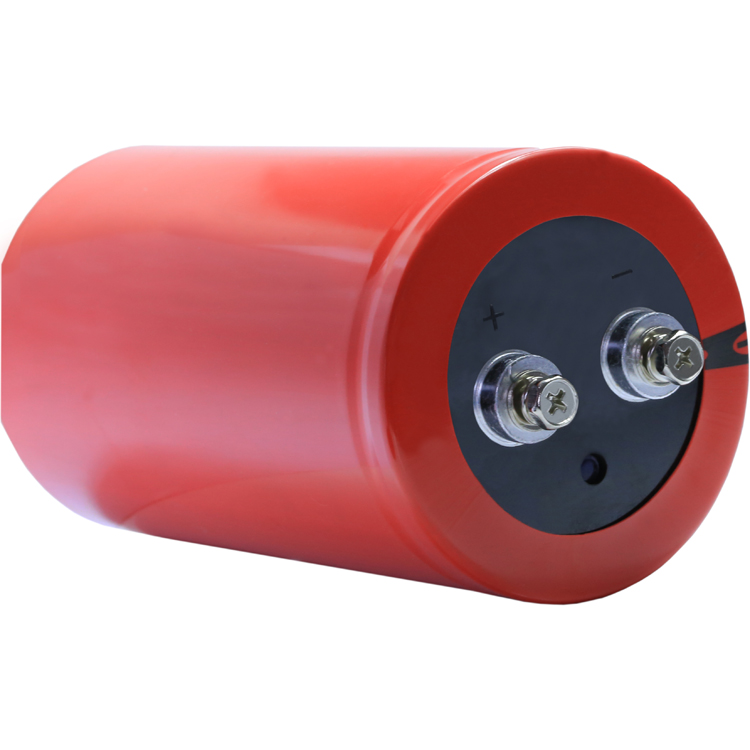

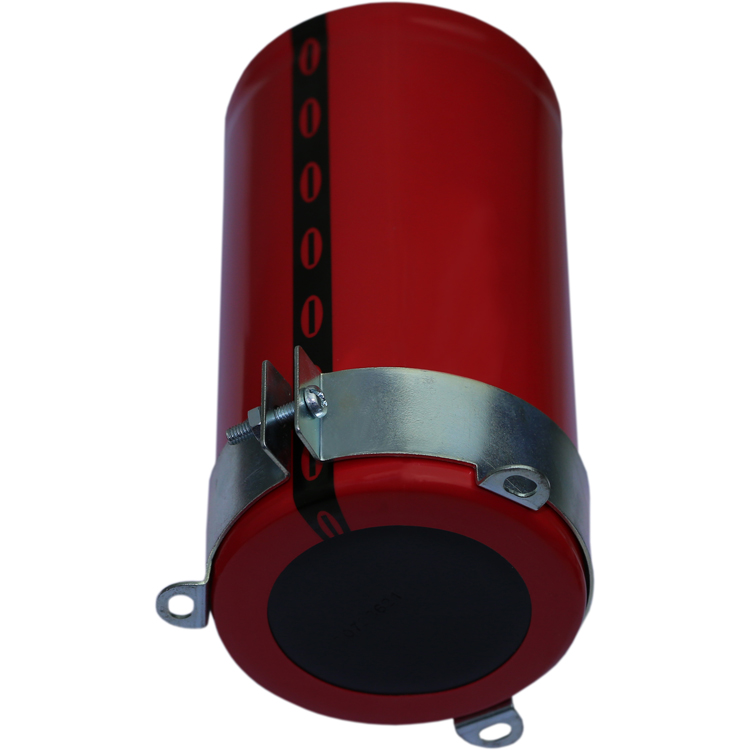

High speed charge discharge Aluminum electrolytic capacito
Series：LHD
Sort：High Energy Storage and Fast Charging and Discharging Aluminum Electrolytic Capacitor
Category：High Energy Storage and Fast Charging and Discharging Aluminum Electrolytic Capacitor
Rated voltage range（Vdc）：350~550

Download

Working cap temperature. Standard life(hours)
Detailed
Specification

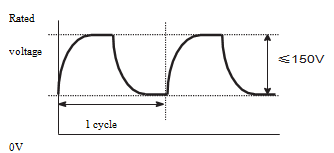

105℃ 4000 hours，life or over 3 millions Time

Prev 沒有了！

沒有了！ Next

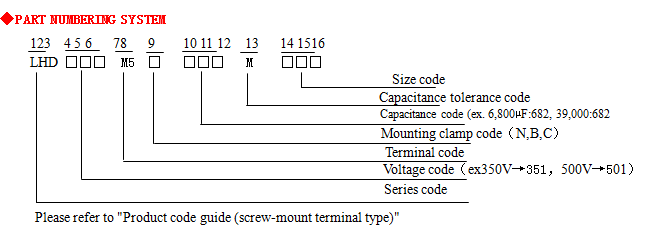

W.V	cap	Case sizeD x L	tanδ120HZ,20℃	Rated ripple current	Part NO.
[V]	[μF]	[mm]	[tanδ]	（Ams/85℃,120Hz）	Part NO.
350V	1500	50*65	0.2	5.09	LHD351M5C152MC65
	1800	50*75	0.2	5.93	LHD351M5C182MC75
	2200	50*96	0.2	7.3	LHD351M5C222MC96
	2700	50*115	0.2	8.76	LHD351M5C272MCB5
	3300	63.5*85	0.2	9.71	LHD351M5C332MD85
	3900	50*130	0.2	11.1	LHD351M5C392MCD0
	3900	63.5*96	0.2	11.1	LHD351M5C392MD96
	4700	63.5*115	0.2	13.2	LHD351M5C472MDB5
	5600	63.5*130	0.2	15.2	LHD351M5C562MDD0
	5600	76.2*96	0.2	14.3	LHD351M5C562ME96
	6800	76.2*115	0.2	17	LHD351M5C682MEB5
	8200	76.2*130	0.2	19.6	LHD351M5C822MED0
	10000	76.2*155	0.2	23.4	LHD351M5C103MEF5
	12000	89*130	0.2	24.1	LHD351M5C123MFD0
	15000	89*155	0.2	29.1	LHD351M5C153MFF5
400V	1200	50*65	0.2	4.55	LHD401M5C122MC65
	1500	50*75	0.2	5.41	LHD401M5C152MC75
	1800	50*85	0.2	6.26	LHD401M5C182MC85
	2200	50*96	0.2	7.3	LHD401M5C222MC96
	2700	50*115	0.2	8.76	LHD401M5C272MCB5
	3300	63.5*96	0.2	10.2	LHD401M5C332MD96
	3900	63.5*115	0.2	12	LHD401M5C392MDB5
	4700	63.5*130	0.2	13.9	LHD401M5C472MDD0
	4700	76.2*96	0.2	13.1	LHD401M5C472ME96
	5600	63.5*155	0.2	16.5	LHD401M5C562MDF5
	6800	76.2*115	0.2	17	LHD401M5C682MEB5
	8200	76.2*155	0.2	21.2	LHD401M5C822MEF5
	10000	89*130	0.2	22	LHD401M5C103MFD0
	12000	89*155	0.2	26	LHD401M5C123MFF5
450V	1000	50*70	0.2	3.87	LHD451M5C102MC70
	1200	50*75	0.2	4.36	LHD451M5C122MC75
	1500	50*90	0.2	5.28	LHD451M5C152MC90
	1800	50*96	0.2	5.95	LHD451M5C182MC96
	2200	50*130	0.2	7.54	LHD451M5C222MCD0
	2700	63.5*96	0.2	8.34	LHD451M5C272MD96
	3300	63.5*115	0.2	9.97	LHD451M5C332MDB5
	3900	63.5*130	0.2	11.4	LHD451M5C392MDD0
	3900	76.2*96	0.2	11.1	LHD451M5C392ME96
	4700	63.5*155	0.2	13.6	LHD451M5C472MDF5
	4700	76.2*115	0.2	13.2	LHD451M5C472MEB5
	5600	76.2*130	0.2	15.2	LHD451M5C562MED0
	6800	76.2*155	0.2	18.1	LHD451M5C682MEF5
	8200	89*130	0.2	19.2	LHD451M5C822MFD0
500V	470	50*60	0.2	2.17	LHD501M5C471MC60
	680	50*65	0.2	2.7	LHD501M5C681MC65
	820	50*75	0.2	3.15	LHD501M5C821MC75
	1000	50*85	0.2	3.67	LHD501M5C102MC85
	1200	50*96	0.2	4.22	LHD501M5C122MC96
	1500	50*115	0.2	5.14	LHD501M5C152MCB5
	1500	63.5*96	0.2	5.42	LHD501M5C152MD96
	1800	50*130	0.2	5.95	LHD501M5C182MCD0
	1800	63.5*96	0.2	5.94	LHD501M5C182MD96
	2200	63.5*115	0.2	7.1	LHD501M5C222MDB5
	2200	76.2*96	0.2	7.3	LHD501M5C222ME96
	2700	63.5*130	0.2	8.31	LHD501M5C272MDD0
	3300	76.2*115	0.2	9.65	LHD501M5C332MEB5
	3900	76.2*130	0.2	11.1	LHD501M5C392MED0
	4700	76.2*155	0.2	13.1	LHD501M5C472MEF5
	6800	89*155	0.2	15.9	LHD501M5C682MFF5
550V	390	50*60	0.2	1.98	LHD551M5C391MC60
	560	50*65	0.2	2.45	LHD551M5C561MC65
	680	50*75	0.2	2.87	LHD551M5C681MC75
	820	50*85	0.2	3.32	LHD551M5C821MC85
	1200	50*115	0.2	4.6	LHD551M5C122MCB5
	1500	63.5*96	0.2	5.42	LHD551M5C152MD96
	1800	76.2*80	0.2	6.12	LHD551M5C182ME80
	2200	76.2*96	0.2	7.3	LHD551M5C222ME96
	2700	76.2*115	0.2	8.73	LHD551M5C272MEB5
	3300	76.2*130	0.2	10.2	LHD551M5C332MED0
	5600	89*155	0.2	14.5	LHD551M5C562MFF5

Frequency（HZ）	50	120	300	1K	3K
coefficient	0.8	1.0	1.1	1.3	1.4
