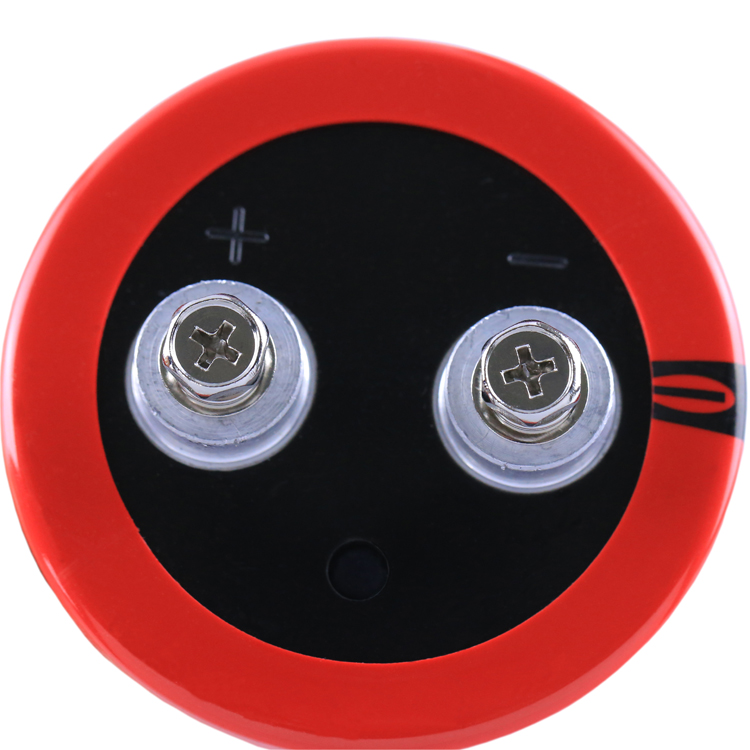

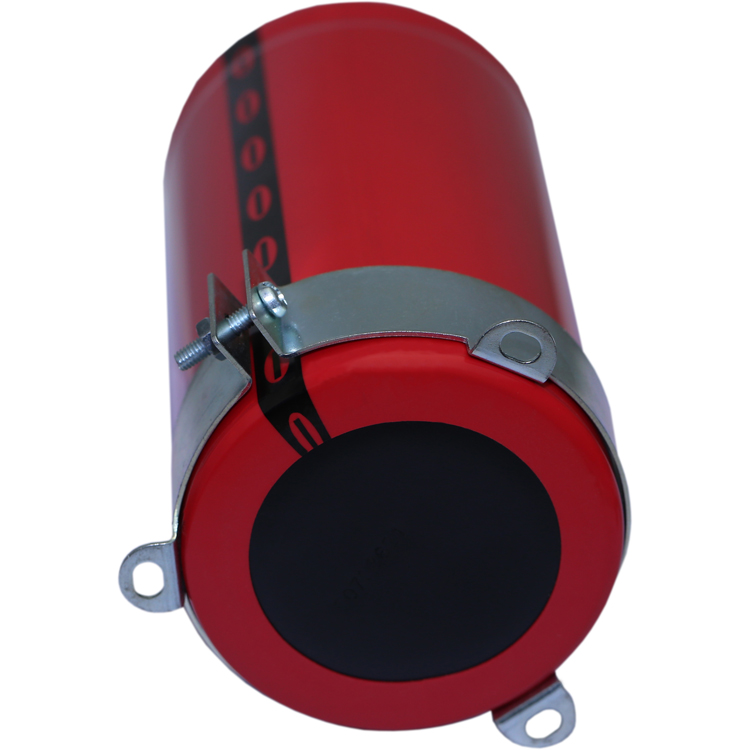

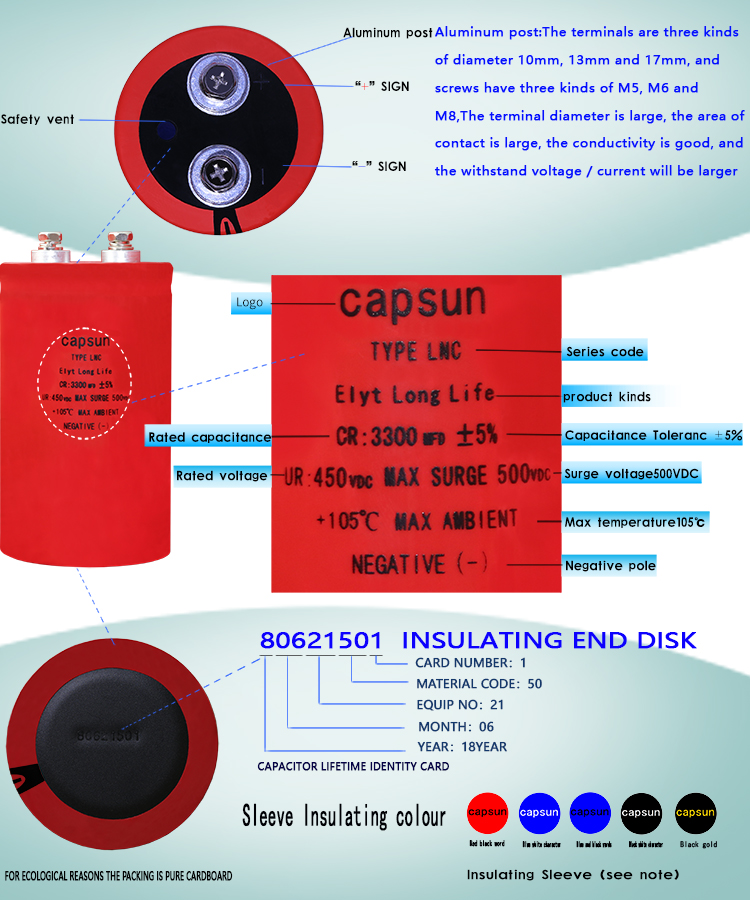

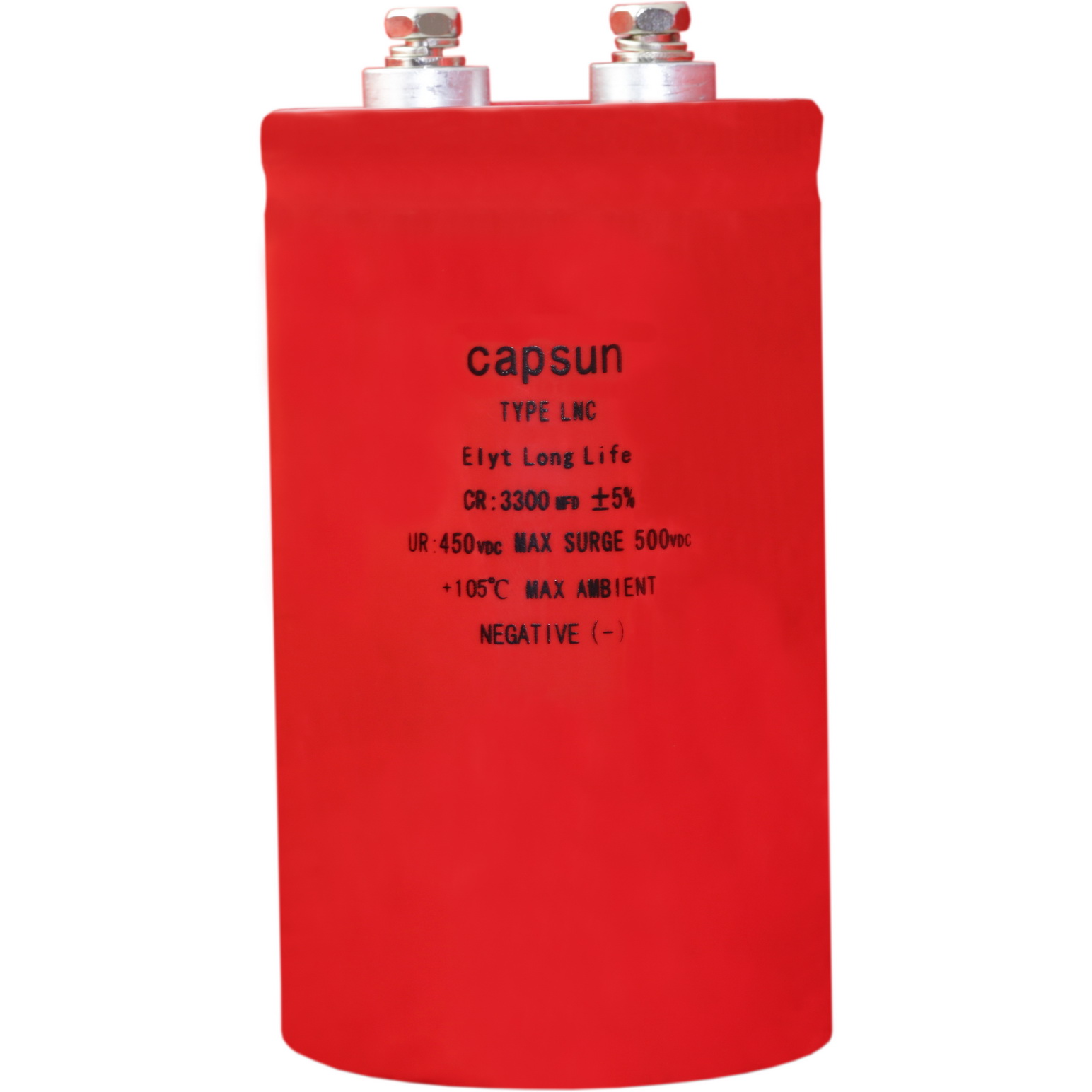

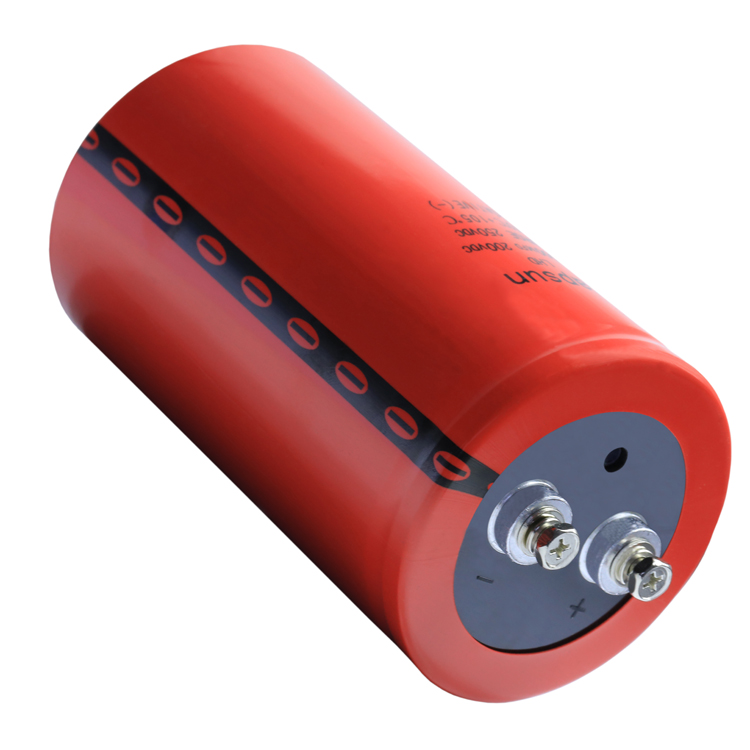

105℃ 12000hours

●High ripple capability

●For train systems and high power consuming inverter circits

●Endurance with ripple current:20000hours at85℃(105℃12000hours)
long life Large control equipment for high-speed train,mechanical equipment,
military facility，large CNC integrated power supply etc
Protection AC/DC DC switching power supply. variable-frequency power sources. High power DC switching power supply
Inverter. Aerospace power. Ships power.particularly within the fields of weapons, communications, sensors and protection systems. magnaflux high-voltage power supplylong life Large control equipment for high-speed train,mechanical equipment, military facility，large CNC integrated power supply etc..

◆SPECIFIC ATIONS

items		Characteristics
Category temperature Range		-25~+85℃
Rated voltage Range		350~450VDC
Capacitance Tolerance		± 20%（M）                                                                                                 at 20℃/120HZ
Leakage Current		I=0.02CV or 5mA,whichever is smaller I: Where, I : Max. leakage current（µA）、C: Nominal capacitance（µF）、Rated voltage (V)at 20℃after 5 minutes)
Dissipation Factor（tanδ）		≤0.10                                                                                                       at 20℃/120HZ
Low Temperature characteristics		Capacitance change(vdc)  C（-25℃）/C（+20℃）≥0.7                                                          at 20℃/120HZ
Insulation Resistance		When measured between the terminals that are connected to each other and to the mounting clamp on the insulating sleeve covering the case by using an insulation resistance meter of 500Vdc, the insulation resistance shall not be less than 100mΩ
Insulation Withstanding Voltage		When a voltage of 2,000Vac is applied for 1 minute between the terminals that are connected to each other and to the mounting clamp on the insulating sleeve covering the case, there shall not be electrical damage

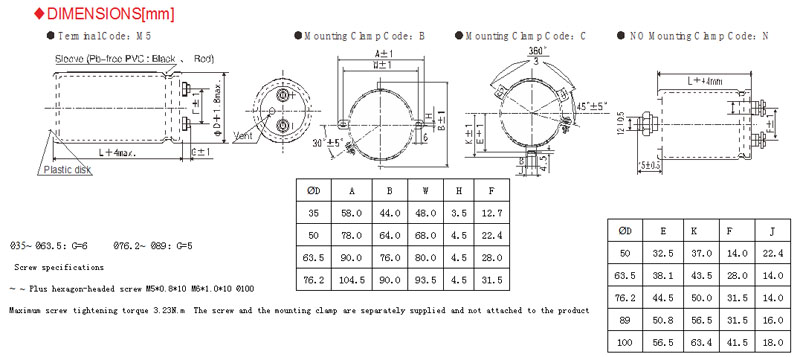

ØD E K F J 50 32.5 37.0 14.0 22.4 63.5 38.1 43.5 28.0 14.0 76.2 44.5 50.0 31.5 14.0 89 50.8 56.5 31.5 16.0 100 56.5 63.4 41.5 18.0 Endurance	The following specifications shall be satisfied when the capacitors are restored to 20℃ after subjected to DC voltage with the rated ripple current is applied (the peak voltage shall not exceed the rated voltage) for 20,000 hours at 85℃
	Capacitance change		≤±20% of the initial value
	D.F. (tanδ)		≤200% of the initial specified value
	Leakage current		≤The initial specified value
Shelf Life	The following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for5000 hours at 85℃ without voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4
	Capacitance change		≤±20% of the initial value
	D.F. (tanδ)		≤200% of the initial specified value
	Leakage current		≤The initial specified value

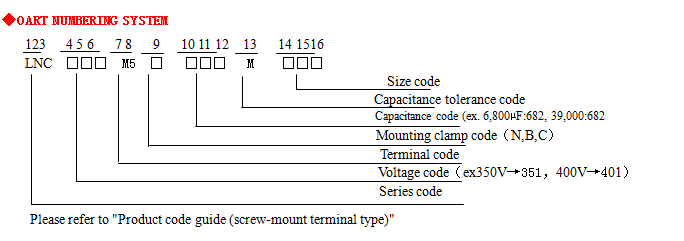

SRANDRAD RATINGS

W.V [Vdc] cap [μF] Case size D x L [mm] tanδ120HZ,20℃ Rated ripple currentAms85℃,120HZ Part NO. 350V 3300 63.5*115 0.10 11.1 LNC351M5C332MDB5 3900 63.5*130 0.10 12.8 LNC351M5C392MDD0 4700 63.5*155 0.10 15.2 LNC351M5C472MDF5 4700 76.2*115 0.10 14.7 LNC351M5C472MEB5 5600 63.5*170 0.10 17.3 LNC351M5C562MDH0 5600 76.2*130 0.10 16.9 LNC351M5C562MED0 6800 63.5*190 0.10 20.0 LNC351M5C682MDK0 6800 76.2*155 0.10 20.2 LNC351M5C682MEF5 8200 76.2*170 0.10 23.1 LNC351M5C822MEH0 10000 89*155 0.10 26.6 LNC351M5C103MFF5 12000 89*190 0.10 32.0 LNC351M5C123MFK0 400V 2700 63.5*115 0.10 10.1 LNC401M5C272MDB5 3300 63.5*130 0.10 11.7 LNC401M5C332MDD0 3900 63.5*155 0.10 13.8 LNC401M5C392MDF5 3900 76.2*115 1.10 14.7 LNC401M5C392MEB5 4700 63.5*170 0.10 15.8 LNC401M5C472MDH0 4700 76.2*130 0.10 15.5 LNC401M5C472MED0 5600 63.5*190 0.10 18.2 LNC401M5C562MDK0 5600 76.2*155 0.10 18.3 LNC401M5C562MEF5 6800 76.2*170 0.10 21.0 LNC401M5C682MEH0 8200 89*155 0.10 24.1 LNC401M5C822MFF5 10000 89*190 0.10 26.5 LNC401M5C103MFK0 450V 2200 63.5*115 0.10 9.1 LNC451M5C222MDB5 2700 63.5*130 0.10 10.6 LNC451M5C272MDD0 2700 76.2*115 0.10 11.2 LNC451M5C272MEB5 3300 63.5*155 0.10 12.7 LNC451M5C332MDF5 3300 76.2*130 0.10 13.0 LNC451M5C332MED0 3900 63.5*170 0.10 14.4 LNC451M5C392MDH0 4700 76.2*155 0.10 16.7 LNC451M5C472MEF5 5600 76.2*190 0.10 20.1 LNC451M5C562MEK0 5600 89*155 0.10 19.9 LNC451M5C562MFF5 6800 89*170 0.10 23.0 LNC451M5C682MFH0 8200 89*190 0.10 26.4 LNC451M5C822MFK0 10000 89*220 0.10 29.1 LNC401M5C103MFN0

◆RTED RIPPLE CURRENT MUIERS
The ripple frequency and standard list of the specified value is not at the same time, please use the value is less than the following
●Frequency Multiplier

Frequency（HZ）	50	100	300	1K	3K
coefficient	0.8	1.0	1.1	1.3	1.4

Note : The endurance of capacitors is shorted with internal heating produced by ripple current at the rate of halving the lifetime with every 5 to 10℃ rise. When long life performance is required in actual use, the rms ripple current has to be reduced. Also, for the LHA series capacitors, using them at operating voltage less than their rated voltage can extend their lifetime. For the details, please contact representative of capsun
